3-2273127-1 | TE Connectivity

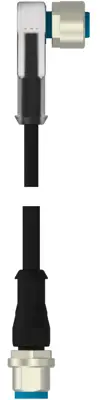

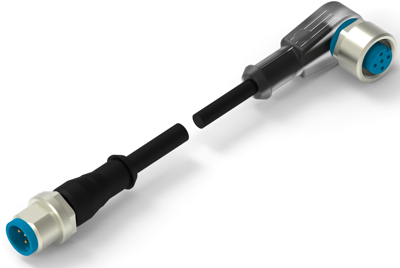

Sensor actuator cable, M12-cable socket, angled to M12-cable plug, straight, 5 pole, 0.3 m, PUR/PVC, black, 4 A, 3-2273127-1
Order No.: 71P7895
EAN: 4099891672188
MPN:
3-2273127-1
Unit Price (€ / pc.)
26.2752 € *
Available: 0 pcs.
Available in 5 Days: 11 pcs.
Leadtime: 14 Weeks **
Total Price:
26.28 € *
Price list
Quantity
Price per unit*
1 pcs.
26.2752 €
10 pcs.
24.1689 €
25 pcs.
21.7532 €
50 pcs.
19.5755 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 3-2273127-1, TE Connectivity
The 3-2273127-1 provides a solution for the increasing needs of sensor connection that safely and reliably secure the communication in industrial environments. This product also finds applications outside of it's traditional industries where a compact reliable connection system with environmental protection is required.
Technical specifications
| Connection (1) | M12-Kabeldose, abgewinkelt | |
| Connection (2) | M12-Kabelstecker, gerade | |
| Pin number | 5-polig | |
| Cable length | 0.3 m | |
| Colour | schwarz | |
| Material | PUR/PVC | |
| Degree of protection (IP) | IP65/IP67 | |
| LED display | Yes | |
| max. Voltage | 24 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
