3-2273124-4 | TE Connectivity

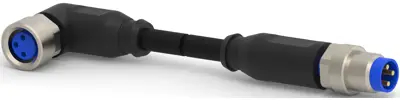

Sensor actuator cable, M8-cable socket, angled to M8-cable plug, straight, 3 pole, 1.5 m, PUR, black, 4 A, 3-2273124-4
Order No.: 38P9407
EAN: 4099891103026
MPN:
3-2273124-4
Unit Price (€ / pc.)
36.3664 € *
Available in 5 Days: 46 pcs. - if ordered today
Total Price:
36.37 € *
Price list
Quantity
Price per unit*
1 pcs.
36.3664 €
10 pcs.
33.4628 €
25 pcs.
30.1070 €
50 pcs.
27.0963 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor/actuator cable, 3-2273124-4, TE Connectivity
M8/M12 Cable Assemblies, Sensor/Actuator, 3-position, A keying code, M8 Plug, M12 Socket, M8 to M12, Right angle connector orientation (End A)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M8-cable socket, angled | |
| Connection (2) | M8-cable plug, straight | |
| Pin number | 3 pole | |
| Cable length | 1.5 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP65/IP67 | |
| LED display | Yes | |
| max. Voltage | 24 V | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
