2273127-2 | TE Connectivity

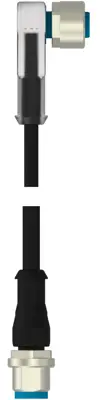

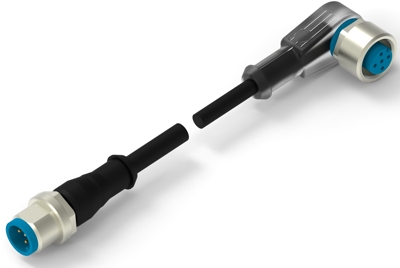

Sensor actuator cable, M12-cable socket, angled to M12-cable plug, straight, 5 pole, 0.6 m, PUR/PVC, black, 4 A, 2273127-2
Order No.: 71P6301
EAN: 4099891672140
MPN:
2273127-2
Unit Price (€ / pc.)
38.5917 € *
Available in 5 Days: 19 pcs. - if ordered today
Total Price:
38.59 € *
Price list
Quantity
Price per unit*
1 pcs.
38.5917 €
2 pcs.
36.1046 €
5 pcs.
33.9150 €
10 pcs.
31.5231 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 2273127-2, TE Connectivity
The 2273127-2 provides a solution for the increasing needs of sensor connection that safely and reliably secure the communication in industrial environments. This product also finds applications outside of it's traditional industries where a compact reliable connection system with environmental protection is required.
Technical specifications
| Filter | Property | Value |
|---|---|---|

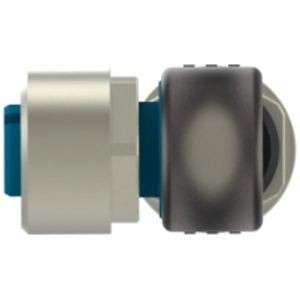

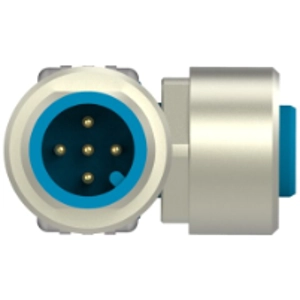

| Connection (1) | M12-cable socket, angled | |
| Connection (2) | M12-cable plug, straight | |
| Pin number | 5 pole | |
| Cable length | 0.6 m | |
| Colour | black | |
| Material | PUR/PVC | |
| Degree of protection (IP) | IP65/IP67 | |
| LED display | Yes | |
| max. Voltage | 24 V | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
