2273125-4 | TE Connectivity

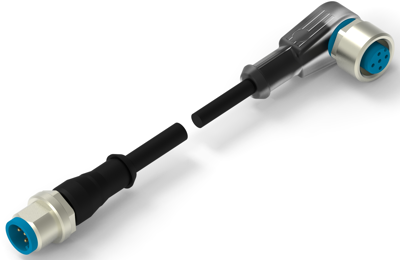

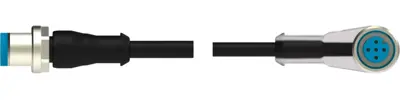

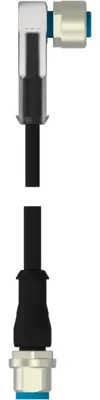

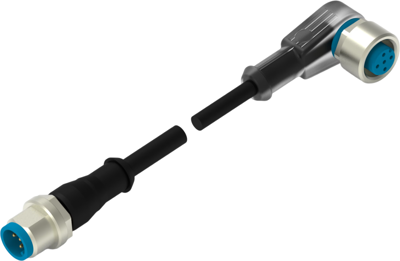

Sensor actuator cable, M12-cable socket, angled to M12-cable plug, straight, 3 pole, 1.5 m, PUR, black, 4 A, 2273125-4
Order No.: 38P9300
EAN: 4099891102166
MPN:
2273125-4
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
25.6088 € *
Available in 12 Days: 25 pcs. - if ordered today
Total Price:
25.61 € *
Price list
Quantity
Price per unit*
1 pcs.
25.6088 €
10 pcs.
24.0023 €
25 pcs.
22.5981 €
50 pcs.
21.3367 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor/actuator cable, 2273125-4, TE Connectivity
M8/M12 Cable Assemblies, Sensor/Actuator, 3-position, A keying code, M12 Socket, M12 Plug, M12, Right angle connector orientation (End A)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable socket, angled | |
| Connection (2) | M12-cable plug, straight | |
| Pin number | 3 pole | |
| Cable length | 1.5 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP65/IP67 | |
| LED display | Yes | |
| max. Voltage | 24 V | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
