2273046-4 | TE Connectivity

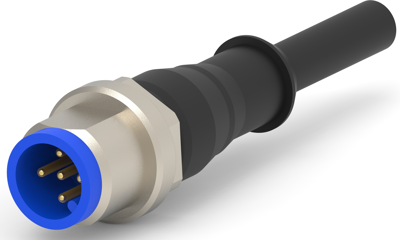

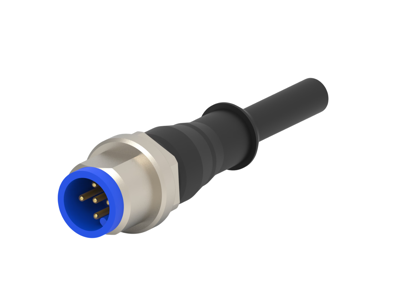

Sensor actuator cable, M12-cable plug, straight to open end, 5 pole, 10 m, PUR, gray, 4 A, 2273046-4
Order No.: 38P9380
EAN: 4099891102753
MPN:
2273046-4
Unit Price (€ / pc.)
44.5417 € *
Standard delivery time from the manufacturer is: 17 Weeks
Sensor/actuator cable, 2273046-4, TE Connectivity
M8/M12 Cable Assemblies, Sensor/Actuator, 5-position, A keying code, M12 Plug, M12 Pigtail, Straight connector orientation (End A), Length 10 m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | open end | |
| Pin number | 5 pole | |
| Cable length | 10 m | |
| Colour | gray | |
| Material | PUR | |
| Degree of protection (IP) | IP65/IP67 | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
