2-2273124-4 | TE Connectivity

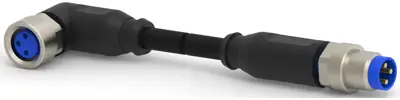

Sensor actuator cable, M8-cable plug, angled to M8-cable plug, straight, 3 pole, 1.5 m, PUR/PVC, black, 4 A, 2-2273124-4
Order No.: 71P5874
MPN:
2-2273124-4
Unit Price (€ / pc.)
18.4093 € *
Standard delivery time from the manufacturer is: 36 Weeks
Total Price:
18.41 € *
Price list
Quantity
Price per unit*
1 pcs.
18.4093 €
5 pcs.
17.4573 €
10 pcs.
16.3387 €
25 pcs.
14.8869 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 2-2273124-4, TE Connectivity
The 2-2273124-4 provides a solution for the increasing needs of sensor connection that safely and reliably secure the communication in industrial environments. This product also finds applications outside of it's traditional industries where a compact reliable connection system with environmental protection is required.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M8-cable plug, angled | |
| Connection (2) | M8-cable plug, straight | |
| Pin number | 3 pole | |
| Cable length | 1.5 m | |
| Colour | black | |
| Material | PUR/PVC | |
| Degree of protection (IP) | IP65/IP67 | |
| LED display | Yes | |
| max. Voltage | 24 V | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
