1-2273011-1 | TE Connectivity

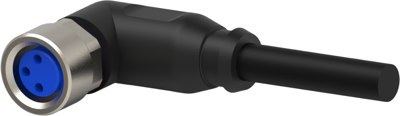

Name: Sensor actuator cable, M8-cable socket, angled to open end, 4 pole, 1.5 m, PVC, black, 4 A, 1-2273011-1
Brand: TE Connectivity
SKU: 38P9426
Availability: InStock

Sensor actuator cable, M8-cable socket, angled to open end, 4 pole, 1.5 m, PVC, black, 4 A, 1-2273011-1

Order No.: 38P9426

EAN: 4099891103194

MPN:

1-2273011-1

Image may differ

Key Specification:

Connection (1) M8-cable socket, angled

Connection (2) open end

Pin number 4 pole

Cable length 1.5 m

Colour black

Download Datasheet Technical specifications

Unit Price (€ / pc.)

9.2225 € *

Available in 5 Days: 75 pcs. - if ordered today

Total Price:

9.22 € *

Price list

Quantity

Price per unit*

1 pcs.

9.2225 €

5 pcs.

8.7346 €

10 pcs.

8.1753 €

25 pcs.

7.4494 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Sensor/actuator cable, 1-2273011-1, TE Connectivity

M8/M12 Cable Assemblies, Sensor/Actuator, 4-position, A keying code, M8 Socket, M8 Pigtail, Right angle connector orientation (End A), Length 1.5 m

Technical specifications

Filter	Property	Value
	Connection (1)	M8-cable socket, angled
	Connection (2)	open end
	Pin number	4 pole
	Cable length	1.5 m
	Colour	black
	Material	PVC
	Degree of protection (IP)	IP65/IP67
	LED display	No
	max. Voltage	30 V
	Rated current	4 A
