2-2013311-1 | TE Connectivity

Name: DIMM socket, 204 pole, pitch 0.6 mm (8.2 mm), copper alloy, gold plated for memory module, 2-2013311-1
Brand: TE Connectivity
SKU: 36P7096
Availability: InStock

DIMM socket, 204 pole, pitch 0.6 mm (8.2 mm), copper alloy, gold plated for memory module, 2-2013311-1

Order No.: 36P7096

MPN:

2-2013311-1

EMBOSS TAPE DDR3 204P 9.2H RVS

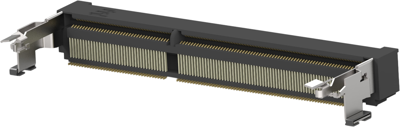

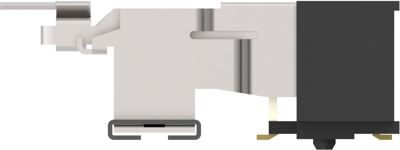

2-2013311-1 TE Connectivity Semiconductor Sockets, Holders Image 2

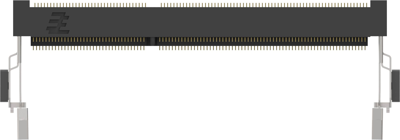

2-2013311-1 TE Connectivity Semiconductor Sockets, Holders Image 3

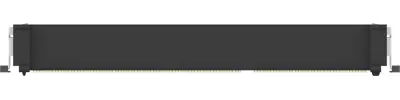

2-2013311-1 TE Connectivity Semiconductor Sockets, Holders Image 4

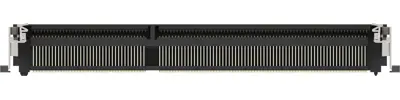

2-2013311-1 TE Connectivity Semiconductor Sockets, Holders Image 5

Image may differ

Key Specification:

Suitable for memory module

Pin number 204 pole

Grid 0.6 mm

Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)

2.4157 € *

Standard delivery time from the manufacturer is: 10 Weeks

Total Price:

21,741.30 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Socket, 2-2013311-1, TE Connectivity

Double Data Rate (DDR) 3, 9.2 mm Stack Height, Right Angle Module Orientation, 204 Position, RAYCHEM RVS, SO DIMM Sockets.

Technical specifications

Filter	Property	Value
	Suitable for	memory module
	Pin number	204 pole
	Grid	0.6 mm
	Contact material	copper alloy, gold plated
	Material	thermoplastic
	Rated voltage	1.5 V
	Rated current	0.5 A
	Height	9.2 mm
	min. operating temperature	-55 °C
	max. operating temperature	85 °C
