1827341-4 | TE Connectivity
DIMM socket, 200 pole, pitch 0.6 mm (6.2 mm), copper alloy, gold plated for memory module, 1827341-4
Order No.: 36P7089
MPN:
1827341-4
DDR SODIMM SOCKET 200P 8H STD TYPE
Unit Price (€ / pc.)
10.4482 € *
Available in 5 Days: 537 pcs. - if ordered today
Total Price:
10.45 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4482 €
10 pcs.
9.7937 €
50 pcs.
9.2225 €
*incl. VAT plus shipping costs
Subject to prior sale

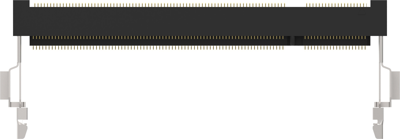

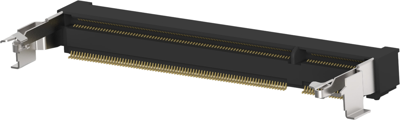

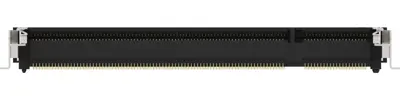

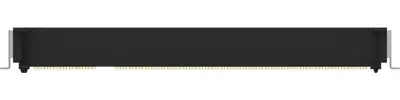

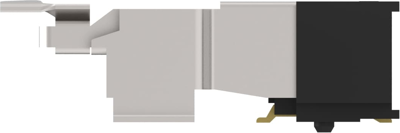

Socket, 1827341-4, TE Connectivity
Double Data Rate (DDR) 2,8 mm Stack Height, Right Angle Module Orientation, 200 Position, DDR SODIMM, SO DIMM Sockets.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | memory module | |
| Rated current | 0.5 A | |
| Material | liquid crystal polymer | |
| max. operating temperature | 85 °C | |
| Rated voltage | 1.8 V | |
| Pin number | 200 pole | |
| Contact material | copper alloy, gold plated | |
| Length | 71.1 mm | |
| min. operating temperature | -55 °C | |
| Height | 8 mm | |
| Grid | 0.6 mm | |
| Product type | DIMM socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
