1759547-1 | TE Connectivity

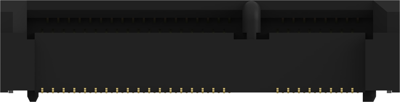

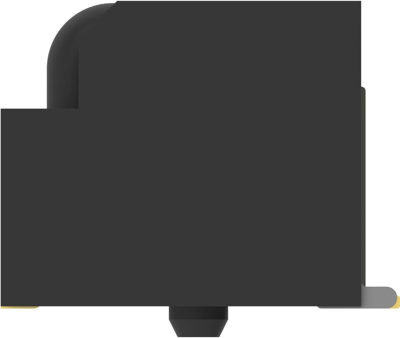

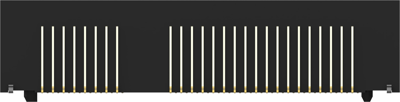

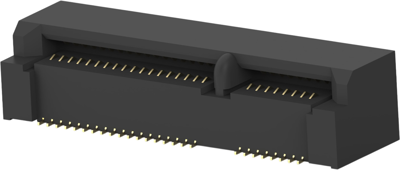

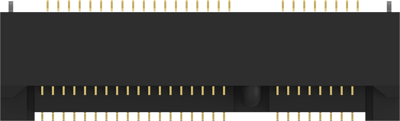

Memory card socket connector, 52 pole, pitch 0.8 mm, copper alloy, gold plated for memory, mini PCI, 1759547-1
Order No.: 36P7107
MPN:
1759547-1
mSATA/mini PCI-E 7H G/F
Unit Price (€ / pc.)
1.5589 € *
Available in 5 Days: 11,381 pcs. - if ordered today
Total Price:
1.56 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5589 €
10 pcs.
1.4518 €
50 pcs.
1.3685 €
*incl. VAT plus shipping costs
Subject to prior sale
Mini PCI Express, 1759547-1, TE Connectivity
Board-to-Board, 52 Position, 0.8 mm Centerline, 7 mm Stack Height, Gold Flash, Mini PCI Express, Mini PCI Express & mSATA.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 52 pole | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 85 °C | |
| Grid | 0.8 mm | |
| Suitable for | memory, mini PCI | |
| Height | 7 mm | |
| Width | 8.2 mm | |
| Length | 30 mm | |
| Contact material | copper alloy, gold plated | |
| Material | liquid crystal polymer | |
| Product type | memory card socket connector |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
