1571986-8 | TE Connectivity

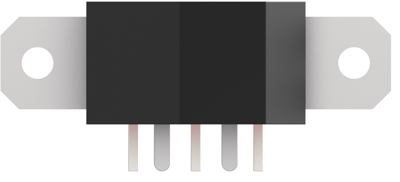

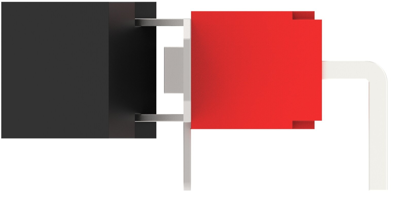

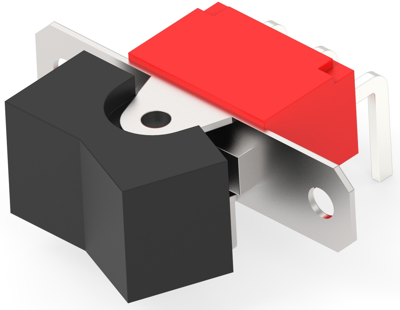

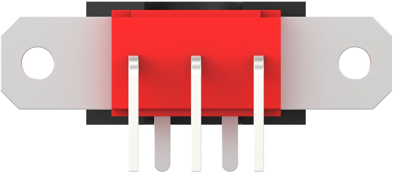

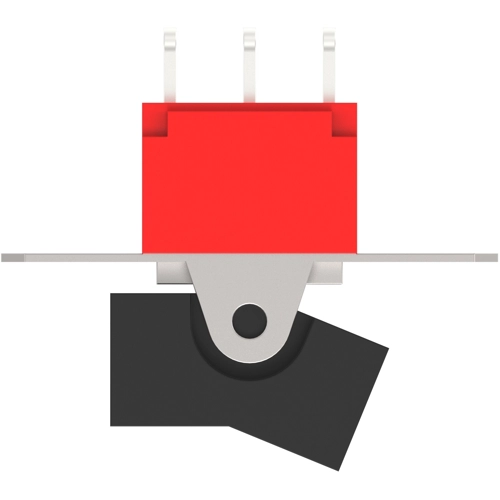

Rocker switch, black, 1 pole, On-On, changeover switch, 2 A/250 VAC, unlit, unprinted, 1571986-8
Unit Price (€ / pc.)
5.2122 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
5.21 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2122 €
10 pcs.
4.8433 €
25 pcs.
4.5220 €
50 pcs.
4.1055 €
*incl. VAT plus shipping costs
Subject to prior sale
Rocker Switch, 1571986-8, TE Connectivity
Product Type: Switch, Rocker Switch Type: Power, Lamp: Without, Rocker Switch LED: Without, Actuator Type: Small, Indicator/Imprint Legend: None, Panel Cutout Size: 10.62 x 17.96 mm, Configuration (Pole-Throw): Single Pole - Double Throw, Operating Function: On On, Rocker Switch Voltage Rating: 250 VAC, Rocker Switch Voltage Rating: 28 VDC, Body Color: Black, Actuator Color: Black, Switch Contact Plating Material: Silver, Rocker Switch Contact Current Rating: 2 A, Termination Type: Printed Circuit, Mounting Angle: Right Angle, Rocker Switch Mounting Type: Printed Circuit Board, Process Sealed: No, VDE Tested: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | changeover switch | |
| Pin number | 1 pole | |
| Printed | No | |
| Connection | PCB connection | |
| illuminated | No | |
| Breaking capacity | 2 A/250 VAC | |
| Shift position | On-On | |
| min. Geräteausschnitt | 10.62 x 17.96 mm | |
| Design | rectangular | |
| contact surface | silver-plated | |
| Actuator colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
