336075-3 | TE Connectivity

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.51 to 1.65 mm², AWG 20 to 15, brass, tin-plated, 336075-3

Order No.: 34P7903
EAN: 4099889620863
MPN:
336075-3
Series: FASTON

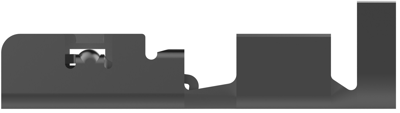

336075-3 TE Connectivity Receptacles Image 1

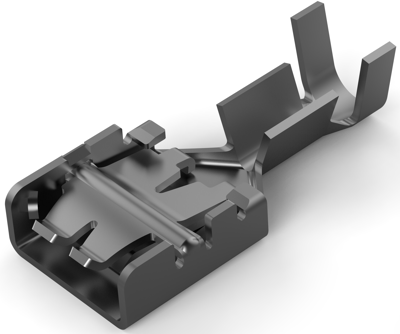

336075-3 TE Connectivity Receptacles Image 2

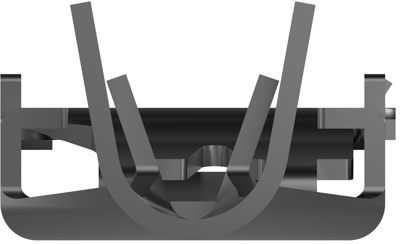

336075-3 TE Connectivity Receptacles Image 3

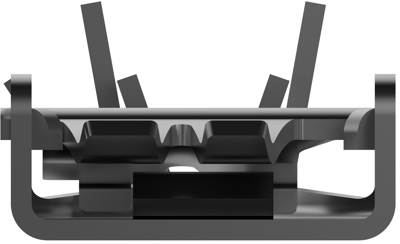

336075-3 TE Connectivity Receptacles Image 4

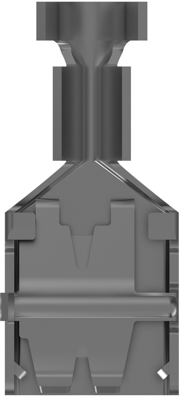

336075-3 TE Connectivity Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1535 € *
Available in 5 Days: 24,000 pcs. - if ordered today
Total Price:
0.77 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1535 €
100 pcs.
0.1345 €
500 pcs.
0.1190 €
1000 pcs.
0.0976 €
*incl. VAT plus shipping costs
Subject to prior sale

Quick disconnect, 336075-3, TE Connectivity

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Voltage (Max): 240 V, Fully Insulated: No, Quick Disconnect Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: .41 mm, Wire Size: 20 – 15 AWG, Wire Size: .51 – 1.65 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: .81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 8000, Quick Disconnect Packaging Method: Strip/Reel

Technical specifications
Isolated No
AWG cross-section AWG 20 to 15
Length 17 mm
Cable cross-section 0.51 to 1.65 mm²
Version flat plug sleeve
Material brass, tin-plated
Connection crimp connection
Suitable for 6.35 x 0.81 mm
Logistics
Country of origin TH
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
