2299286-2 | TE Connectivity

Insulated flat plug sleeve, 4.75 x 0.51 mm, 0.6 to 1.4 mm², AWG 20 to 16, brass, tin-plated, 2299286-2

Order No.: 71P6395
EAN: 4099891713171
MPN:
2299286-2
Series: POD-LOK 187

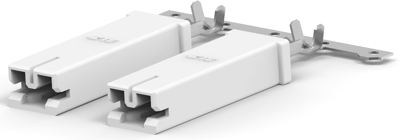

2299286-2 TE Connectivity Receptacles Image 1

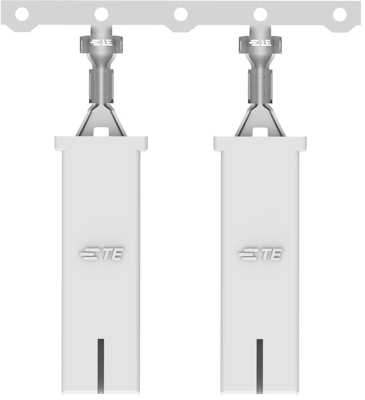

2299286-2 TE Connectivity Receptacles Image 2
2299286-2 TE Connectivity Receptacles Image 3
2299286-2 TE Connectivity Receptacles Image 4
2299286-2 TE Connectivity Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.2666 € *
Available in 5 Days: 24,000 pcs. - if ordered today
Total Price:
1,066.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
0.2666 €

Receptacle terminal, 2299286-2, TE Connectivity

The 2299286-2 is a pre-insulated POD-LOK receptacle terminal that combines positive lock receptacles with glow wire test (GWT). The locking feature on the receptacle helps prevent unintentional disconnection. Large gripping and pushing surfaces make the housing ergonomically friendly, potentially contributing to line workers comfort and productivity.

Technical specifications
Isolated Yes
AWG cross-section AWG 20 to 16
Length 33.8 mm
Cable cross-section 0.6 to 1.4 mm²
Version flat plug sleeve
Material brass, tin-plated
Connection crimp connection
Suitable for 4.75 x 0.51 mm
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
