2299286-1 | TE Connectivity
Insulated flat plug sleeve, 4.75 x 0.51 mm, 0.2 to 0.6 mm², AWG 24 to 20, brass, tin-plated, 2299286-1
Unit Price (€ / pc.)
0.1940 € *
Available in 5 Days: 24,000 pcs. - if ordered today

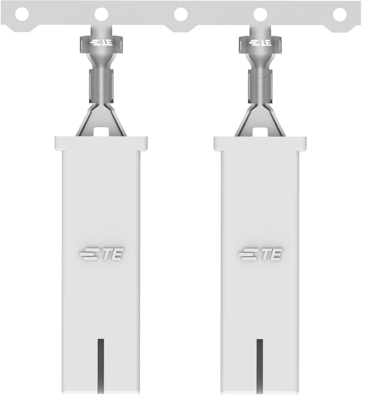

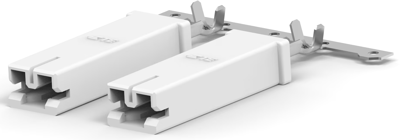

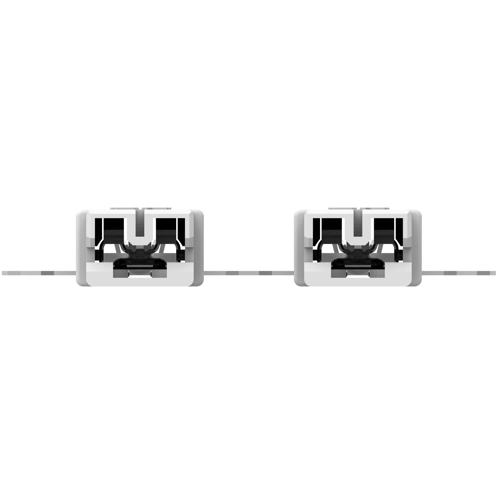

Receptacle terminal, 2299286-1, TE Connectivity
The 2299286-1 is a pre-insulated POD-LOK receptacle terminal that combines positive lock receptacles with glow wire test (GWT). The locking feature on the receptacle helps prevent unintentional disconnection. Large gripping and pushing surfaces make the housing ergonomically friendly, potentially contributing to line workers comfort and productivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| AWG cross-section | AWG 24 to 20 | |
| Length | 33.8 mm | |
| Cable cross-section | 0.2 to 0.6 mm² | |
| Version | flat plug sleeve | |
| Material | brass, tin-plated | |
| Connection | crimp connection | |
| Suitable for | 4.75 x 0.51 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
