2-2321973-1 | TE Connectivity

Uninsulated flat plug sleeve, 1.2 x 0.6 mm, 0.75 to 1 mm², AWG 18 to 17, copper alloy, 2-2321973-1

Order No.: 71P5959
EAN: 4099891712938
MPN:
2-2321973-1
Series: MCON

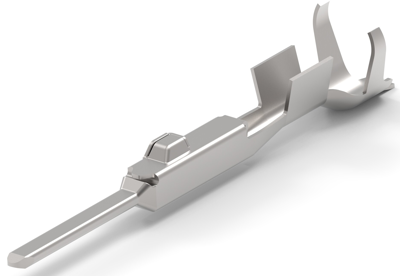

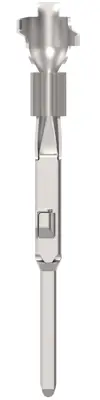

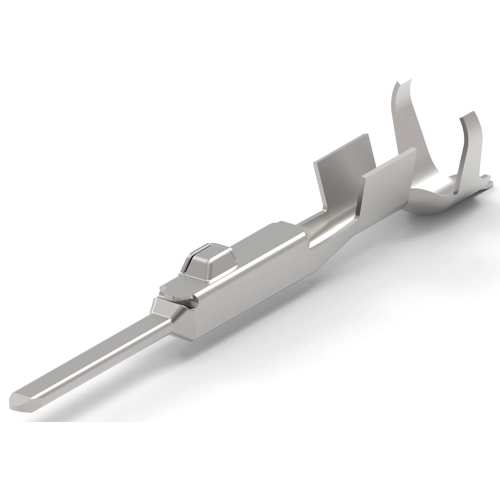

2-2321973-1 TE Connectivity Receptacles Image 1
2-2321973-1 TE Connectivity Receptacles Image 2
2-2321973-1 TE Connectivity Receptacles Image 3
2-2321973-1 TE Connectivity Receptacles Image 4
2-2321973-1 TE Connectivity Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1749 € *
Available in 5 Days: 84,000 pcs. - if ordered today
Total Price:
1,224.51 € *
Price list
Quantity
Price per unit*
7000 pcs.
0.1749 €
14000 pcs.
0.1702 €
*incl. VAT plus shipping costs
Subject to prior sale

Tab contact, 2-2321973-1, TE Connectivity

The 2-2321973-1 is contact system that is used for electrical and electronic applications for passenger cars and commercial vehicles. The contact design meets standardized blade size and interface requirements of the automotive industry.

Technical specifications
Isolated No
AWG cross-section AWG 18 to 17
Cable cross-section 0.75 to 1 mm²
Version flat plug sleeve
Material copper alloy
Connection crimp connection
Suitable for 1.2 x 0.6 mm
Logistics
Country of origin US
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
