1742971-3 | TE Connectivity

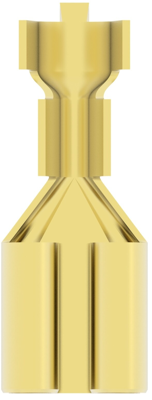

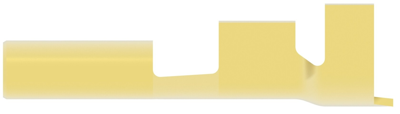

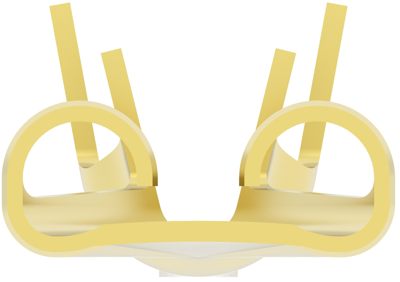

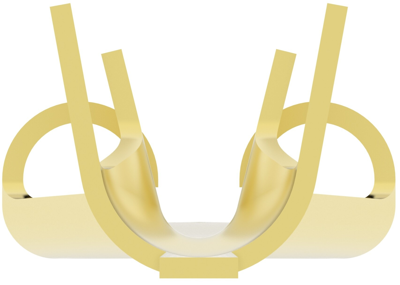

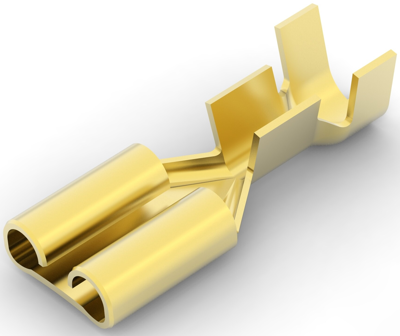

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, 1742971-3
Unit Price (€ / pc.)
0.0571 € *
Available in 5 Days: 20,000 pcs. - if ordered today
Total Price:
571.20 € *
Price list
Quantity
Price per unit*
10000 pcs.
0.0571 €
20000 pcs.
0.0524 €
*incl. VAT plus shipping costs
Subject to prior sale
Quick disconnect, 1742971-3, TE Connectivity
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: .41 mm, Wire Size: 18 – 14 AWG, Wire Size: .82 – 2.08 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 150 °C, Packaging Quantity: 10000, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18 to 14 | |
| Length | 19.18 mm | |
| Connection | crimp connection | |
| Suitable for | 6.35 x 0.81 mm | |
| Cable cross-section | 0.82 to 2.08 mm² | |
| Material | brass | |
| Version | flat plug sleeve | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
