2053638-5 | TE Connectivity
Connection cable, 5 m, plug straight to plug straight, 0.129 mm², AWG 26, 2053638-5
As a private customer, you can buy this item as soon as we have it back in stock.

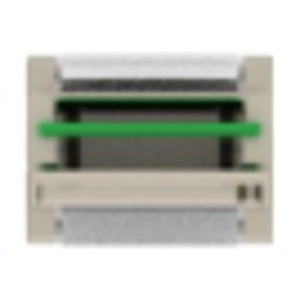

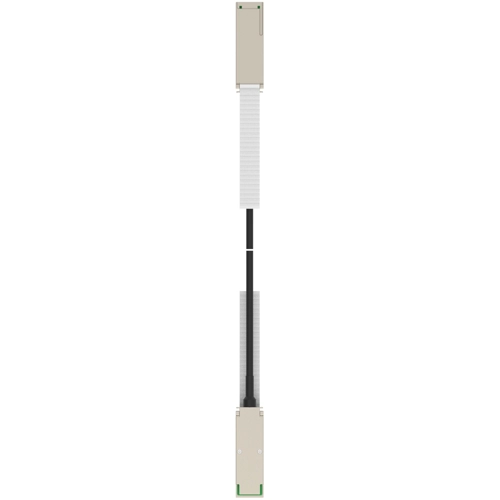

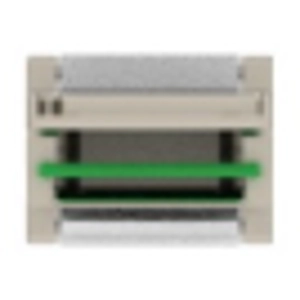

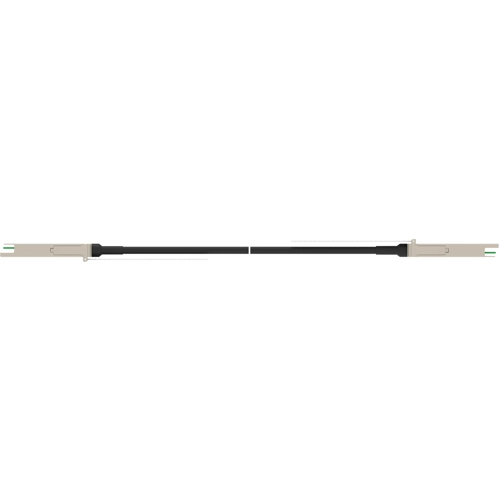

Connecting line, 2053638-5, TE Connectivity
The 2053638-5 is a Connecting line four-channel package, that offers 3 times the density of traditional SFP ports and now supports speeds up to more than 25Gb/s per channel to support the new 100 Gbps Ethernet and 100 Gbps InfiniBand Enhanced Data Rate applications.
Features
- Compatible with industry standard
- Pull tab unlatching allows compact belly to belly application
- 360 degree cable braid crimp suppresses EMI
Applications
- Switches, routers, and host bus adapters
- Enterprise storage
- High density, high speed I/O
- Multiple channel interconnects
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | connecting line | |
| Connection (1) | plug | |
| Connection (2) | plug | |
| Cable length | 5 m | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable cross-section | 0.129 mm² | |
| AWG cross-section | AWG 26 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444210 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
