1676979-7 | TE Connectivity

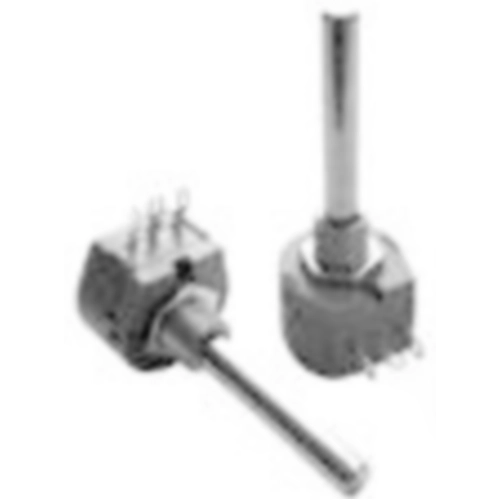

Wire-wound potentiometers, 2.5 kΩ, 1 W, linear, stranded wires, 1676979-7
Order No.: 40P7477
EAN: 4099879970558
MPN:
1676979-7
TW1252KA
Unit Price (€ / pc.)
12.9353 € *
Available: 5 pcs.
Available in 5 Days: 1,000 pcs. - if ordered today
Total Price:
12.94 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9353 €
5 pcs.
12.2689 €
10 pcs.
11.4835 €
25 pcs.
10.4601 €
*incl. VAT plus shipping costs
Subject to prior sale
Potentiometer, 1676979-7, TE
This product offers 1 watt power rating, low terminal resistance and excellent linearity. For a rugged high power control potentiometer, this potentiometer will satisfy your requirements.
Features
- Wirewound element
- Robust construction
- 1 W rating at 40 °C
- Excellent linearity
- Custom designs possible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Mechanic rotary range | 285 ° | |
| Power | 1 W | |
| max. number of revolutions | 1 | |
| Connection | stranded wires | |
| max. operating temperature | 125 °C | |
| axle diameter | 6.35 mm | |
| Rotary range, electrical | 265 ° | |
| Length | 23.5 mm | |
| Assembly | angled | |
| Width | 22.6 mm | |
| min. operating temperature | -50 °C | |
| Track Taper | linear | |
| ohmic resistance | 2.5 kΩ | |
| Version | Wire potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85333100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
