1-1676979-1 | TE Connectivity

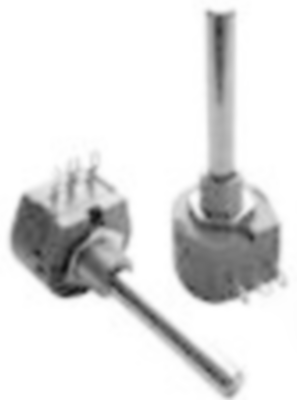

Rotary potentiometer, 5 kΩ, 1 W, linear, solder lug, 1-1676979-1
Order No.: 40P7480
EAN: 4099879970565
MPN:
1-1676979-1
TW1502KA
Unit Price (€ / pc.)
14.3752 € *
Available: 25 pcs.
Total Price:
14.38 € *
Price list
Quantity
Price per unit*
1 pcs.
14.3752 €
10 pcs.
13.3399 €
25 pcs.
12.4593 €
50 pcs.
11.3288 €
*incl. VAT plus shipping costs
Subject to prior sale
Potentiometer, 1-1676979-1, TE Connectivity
Sealed Potentiometer: No, Turn Type: Single Turn, Element Material: Wire Wound, Number of Turns: 1, Sections: Single, Adjustment Location: Side, Adjustment Style: Spindle, Potentiometer Power Rating: 1 W, Potentiometer Tolerance: 10%, Potentiometer Resistance: 5K Ω, Resistance Range: 1kΩ – 1MΩ Ω, Shaft Style: Plain, Potentiometer Termination Type: Eyelet, Potentiometer Mount Style: Panel Mount, Mount Angle: Right Angle, Potentiometer Dimensions: 23.5 x 22.6 mm, Shaft Size: 6.35 x 25 mm, Temperature Coefficient: ±100 ppm/°C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rotary range, electrical | 265 ° | |
| min. operating temperature | -55 °C | |
| Track Taper | linear | |
| max. operating temperature | 125 °C | |
| Version | rotary potentiometer | |
| Connection | solder lug | |
| Assembly | angled | |
| max. number of revolutions | 1 | |
| Power | 1 W | |
| Width | 22.6 mm | |
| Mechanic rotary range | 285 ° | |
| Length | 23.5 mm | |
| ohmic resistance | 5 kΩ | |
| axle diameter | 6.35 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85333100 |
| Country of origin | MX |
| Original Packaging | Bulk with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
