9-1546119-1 | TE Connectivity
PCB terminal, 24 pole, AWG 22 to 12, 20 A, screw connection, black, 9-1546119-1
Unit Price (€ / pc.)
20.6822 € *
Available in 5 Days: 758 pcs. - if ordered today
Total Price:
20.68 € *
Price list
Quantity
Price per unit*
1 pcs.
20.6822 €
10 pcs.
19.2066 €
25 pcs.
17.9333 €
50 pcs.
16.3030 €
*incl. VAT plus shipping costs
Subject to prior sale

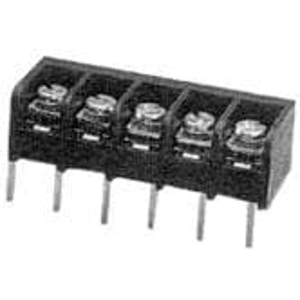

PCB terminal, 9-1546119-1, TE Connectivity
Barrier strip, Tri-Barrier, Printed circuit, Wire-to-Board, 24 Position, 8.26 mm Centerline, 1 Row, 150 V.
Applications
- Machine control
- Power supplies
- Test & measurement
- Automation equipment
- Security/alarm devices
- Garage door openers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 15.24 mm | |
| AWG cross-section | AWG 22 to 12 | |
| Rated current | 20 A | |
| Cable cross-section | 0.3-3.0 mm² | |
| Colour | black | |
| Pin number | 24 pole | |
| Assembly | THT | |
| Height | 12.7 mm | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
