8-1546158-0 | TE Connectivity

PCB terminal, 20 pole, AWG 22 to 12, 25 A, screw connection, black, 8-1546158-0

Order No.: 72P1661
EAN: 4099891632748
MPN:
8-1546158-0

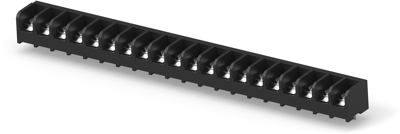

8-1546158-0 TE Connectivity PCB Terminal Blocks Image 1

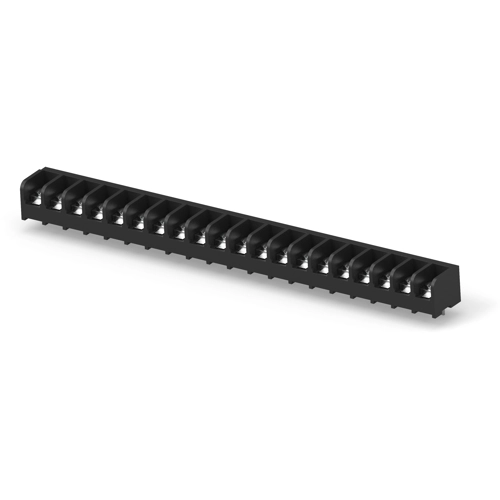

8-1546158-0 TE Connectivity PCB Terminal Blocks Image 2

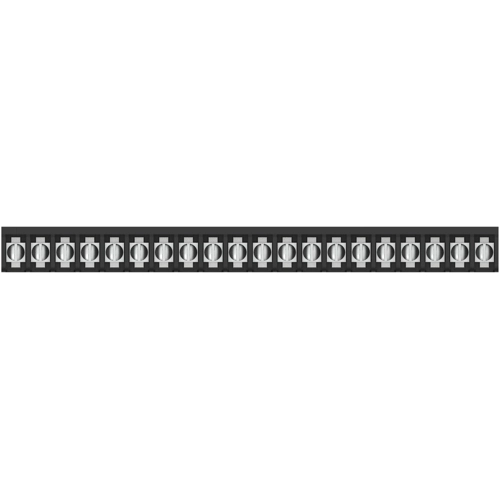

8-1546158-0 TE Connectivity PCB Terminal Blocks Image 3
8-1546158-0 TE Connectivity PCB Terminal Blocks Image 4
8-1546158-0 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
16.5648 € *
Available in 5 Days: 1,172 pcs. - if ordered today
Total Price:
16.56 € *
Price list
Quantity
Price per unit*
1 pcs.
16.5648 €
10 pcs.
15.3867 €
25 pcs.
14.3633 €
50 pcs.
13.0543 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 8-1546158-0, TE Connectivity

Barrier strip, Tri-Barrier, Printed circuit pin, Wire-to-Board, 20 Position, 9.53 mm Centerline, 1 Row, 300 V / 600 V.

Technical specifications
Filter Property Value
Height 15.88 mm
Connection screw connection
AWG cross-section AWG 22 to 12
Assembly THT
Cable cross-section 0.3-3.0 mm²
Pin number 20 pole
Width 17.78 mm
Colour black
Rated current 25 A
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
