796949-6 | TE Connectivity

PCB terminal, 6 pole, pitch 5.08 mm, AWG 30-12, 17.5 A, cage clamp, black, 796949-6

Order No.: 72P1525
EAN: 4099891632632
MPN:
796949-6

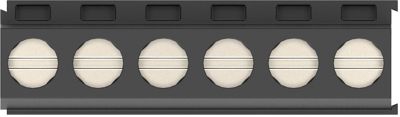

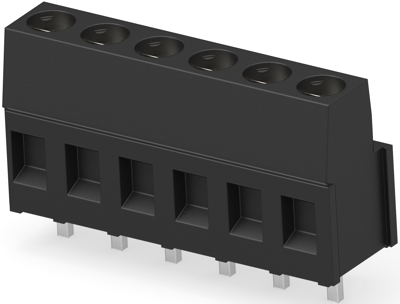

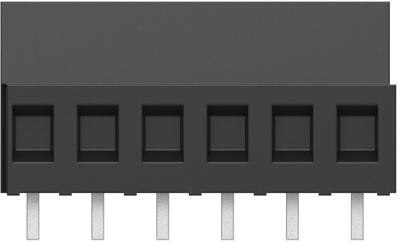

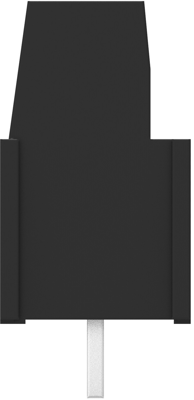

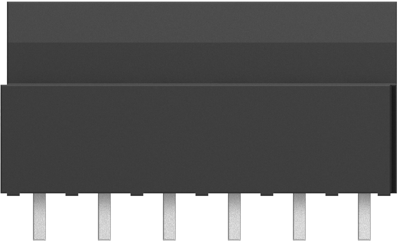

796949-6 TE Connectivity PCB Terminal Blocks Image 1
796949-6 TE Connectivity PCB Terminal Blocks Image 2
796949-6 TE Connectivity PCB Terminal Blocks Image 3
796949-6 TE Connectivity PCB Terminal Blocks Image 4
796949-6 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
7.2590 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
7.26 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2590 €
10 pcs.
6.6878 €
50 pcs.
6.0095 €
100 pcs.
5.4145 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 796949-6, TE Connectivity

PCB Terminal block, Header, Wire-to-Board, 6 Position, 5.08 mm Centerline, 1 Row, Side wire entry angle, 30 - 12 AWG Wire size.

Applications

  • Industrial control
  • HVAC equipment and control
  • Communications equipment
  • Test and measurement
  • Fire and security
Technical specifications
Colour black
AWG cross-section AWG 30-12
Rated current 17.5 A
Grid 5.08 mm
Width 9 mm
Height 15.2 mm
Cable cross-section 0.05-3 mm²
Pin number 6 pole
Connection cage clamp
Rated voltage 300 V
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
