796875-1 | TE Connectivity
PCB terminal, 11 pole, 0.326-5.26 mm², 30 A, screw connection, black, 796875-1
Unit Price (€ / pc.)
18.2665 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
18.27 € *
Price list
Quantity
Price per unit*
1 pcs.
18.2665 €
5 pcs.
17.3145 €
10 pcs.
16.1959 €
25 pcs.
14.7679 €
*incl. VAT plus shipping costs
Subject to prior sale

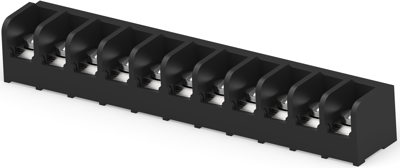

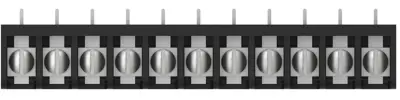

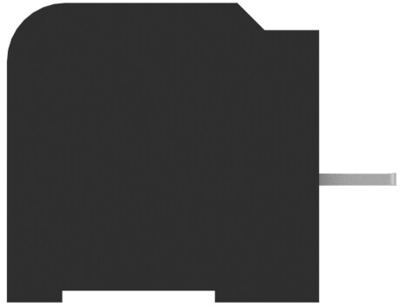

PCB terminal, 796875-1, TE Connectivity
Barrier strip, Tri-Barrier, Printed circuit, Right angle, Wire-to-Board, 11 Position, 11.1 mm Centerline, 1 Row, 600 V.
Applications
- Machine control
- Power supplies
- Test & measurement
- Automation equipment
- Security/alarm devices
- Garage door openers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Colour | black | |
| Cable cross-section | 0.326-5.26 mm² | |
| Rated current | 30 A | |
| Height | 19.56 mm | |
| Pin number | 11 pole | |
| Connection | screw connection | |
| Width | 20.32 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
