796859-8 | TE Connectivity

PCB terminal, 8 pole, pitch 5.08 mm, AWG 30-12, 15 A, cage clamp, green, 796859-8

Order No.: 72P1510
EAN: 4099891632502
MPN:
796859-8
TE Connectivity

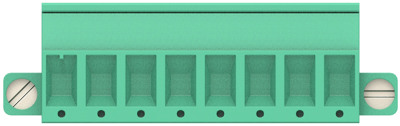

796859-8 TE Connectivity PCB Terminal Blocks Image 1

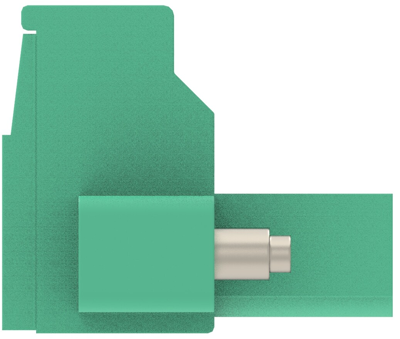

796859-8 TE Connectivity PCB Terminal Blocks Image 2

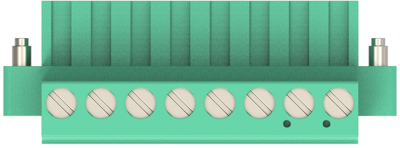

796859-8 TE Connectivity PCB Terminal Blocks Image 3

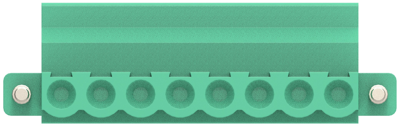

796859-8 TE Connectivity PCB Terminal Blocks Image 4

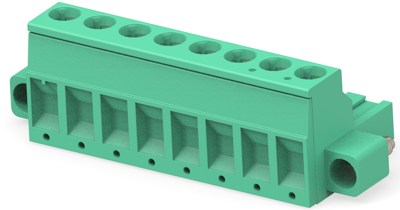

796859-8 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
8.8060 € *
Available: 0 pcs.
Available in 5 Days: 3,167 pcs.
Leadtime: 1 Week **
Total Price:
8.81 € *
Price list
Quantity
Price per unit*
15 pcs.
8.8060 €
55 pcs.
8.2705 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 796859-8, TE Connectivity

PCB Terminal block, Plug, Wire-to-Board, 8 Position, 5.08 mm Centerline, 1 Row, Side wire entry angle, 30 - 12 AWG Wire size.

Applications

  • Industrial control
  • HVAC equipment and control
  • Communications equipment
  • Test and measurement
  • Fire and security
Technical specifications
Connection cage clamp
AWG cross-section AWG 30-12
Width 18.4 mm
Colour green
Height 15.5 mm
Cable cross-section 0.05-3 mm²
Rated voltage 300 V
Rated current 15 A
Pin number 8 pole
Grid 5.08 mm
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
