796709-2 | TE Connectivity

PCB terminal, 7 pole, 0.326-5.26 mm², 30 A, screw connection, black, 796709-2

Order No.: 72P1501
EAN: 4099891632410
MPN:
796709-2

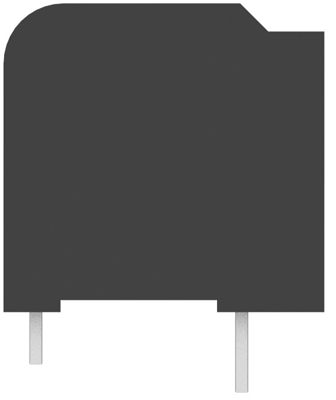

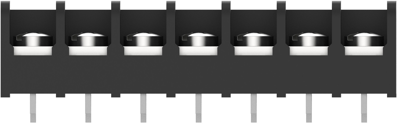

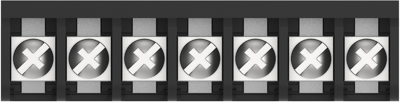

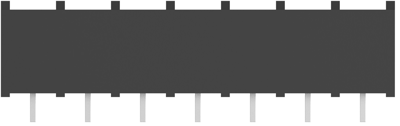

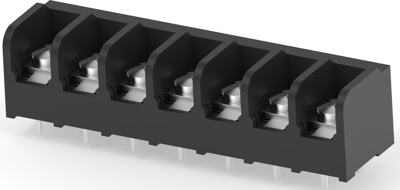

796709-2 TE Connectivity PCB Terminal Blocks Image 1
796709-2 TE Connectivity PCB Terminal Blocks Image 2
796709-2 TE Connectivity PCB Terminal Blocks Image 3
796709-2 TE Connectivity PCB Terminal Blocks Image 4
796709-2 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
15.1249 € *
Available in 5 Days: 1,014 pcs. - if ordered today
Total Price:
15.12 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1249 €
5 pcs.
14.3395 €
10 pcs.
13.4113 €
25 pcs.
12.2332 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 796709-2, TE Connectivity

Barrier strip, Tri-Barrier, Double printed circuit pin, Wire-to-Board, 7 Position, 11.1 mm Centerline, 1 Row, 600 V.

Technical specifications
Filter Property Value
Connection screw connection
Width 20.32 mm
Colour black
Pin number 7 pole
Assembly THT
Height 19.56 mm
Rated current 30 A
Cable cross-section 0.326-5.26 mm²
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
