796683-2 | TE Connectivity
PCB terminal, 2 pole, pitch 5 mm, AWG 30-12, 17.5 A, solder connection, green, 796683-2
Order No.: 59F929
MPN:
796683-2
Unit Price (€ / pc.)
1.3328 € *
Available in 5 Days: 901 pcs. - if ordered today
Total Price:
1.33 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3328 €
10 pcs.
1.2376 €
25 pcs.
1.1543 €
50 pcs.
1.0472 €
*incl. VAT plus shipping costs
Subject to prior sale

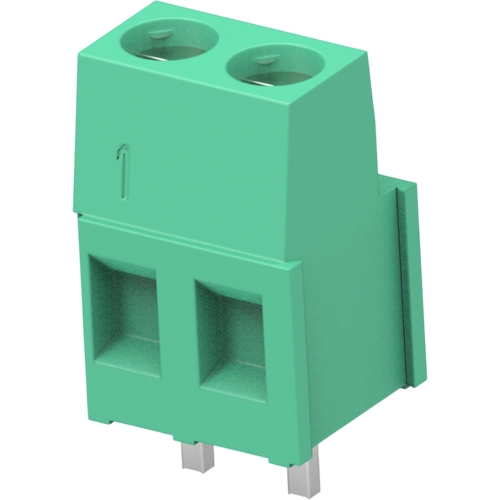

PCB terminal block, 796683-2, TE Connectivity
2 Position PCB Terminal Block, Header, Wire-to-Board, 5 mm Centerline, 1 Row, 90° Wire Entry Angle, 30 - 12 AWG, 0.05 - 3 mm² Wire, 300 VAC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 9 mm | |
| AWG cross-section | AWG 30-12 | |
| Rated current | 17.5 A | |
| Height | 15.2 mm | |
| Colour | green | |
| Assembly | THT | |
| Width | 10 mm | |
| Grid | 5 mm | |
| Rated voltage | 300 V | |
| Connection | solder connection | |
| Pin number | 2 pole | |
| Cable cross-section | 0.05-3.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
