796681-3 | TE Connectivity
PCB terminal, 3 pole, pitch 5 mm, AWG 30-12, 17.5 A, cage clamp, blue, 796681-3
Order No.: 72P1483
MPN:
796681-3
Unit Price (€ / pc.)
1.2376 € *
Available in 5 Days: 2,357 pcs. - if ordered today
Total Price:
1.24 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2376 €
10 pcs.
1.1424 €
25 pcs.
1.0710 €
50 pcs.
0.9758 €
*incl. VAT plus shipping costs
Subject to prior sale

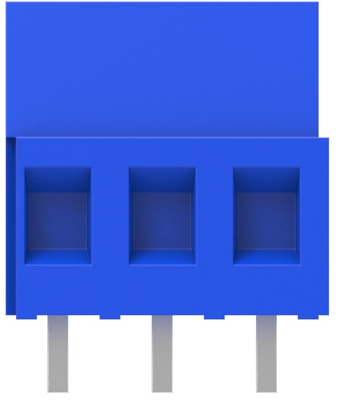

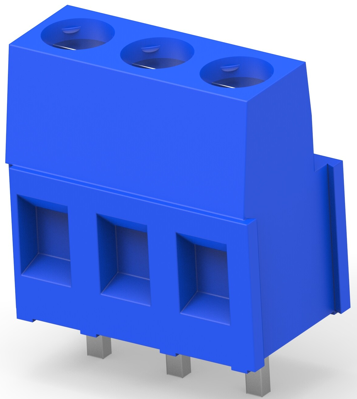

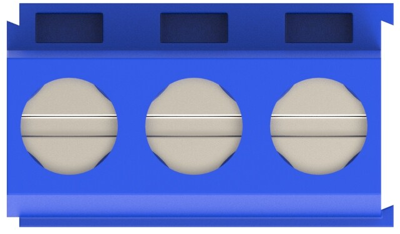

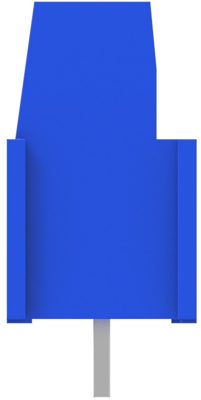

PCB terminal, 796681-3, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 3 Position, 5 mm Centerline, 1 Row, Side wire entry angle, 30 - 12 AWG Wire size.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 30-12 | |
| Rated current | 17.5 A | |
| Height | 15.2 mm | |
| Colour | blue | |
| Assembly | THT | |
| Width | 9 mm | |
| Grid | 5 mm | |
| Rated voltage | 300 V | |
| Connection | cage clamp | |
| Pin number | 3 pole | |
| Cable cross-section | 0.05-3 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
