796634-5 | TE Connectivity
PCB terminal, 5 pole, pitch 5.08 mm, AWG 30-12, 15 A, cage clamp, green, 796634-5
Order No.: 72P1455
EAN: 4099891632045
MPN:
796634-5
Unit Price (€ / pc.)
7.2947 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
7.29 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2947 €
5 pcs.
6.9139 €
10 pcs.
6.4736 €
25 pcs.
5.9024 €
*incl. VAT plus shipping costs
Subject to prior sale

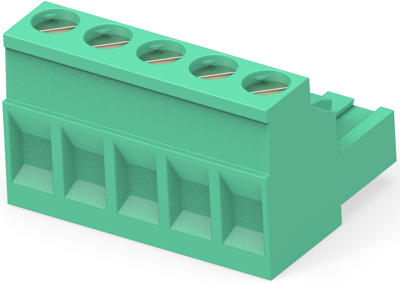

PCB terminal, 796634-5, TE Connectivity
PCB Terminal block, Plug, Wire-to-Board, 5 Position, 5.08 mm Centerline, 1 Row, Side wire entry angle, 30 - 12 AWG Wire size.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 30-12 | |
| Colour | green | |
| Pin number | 5 pole | |
| Grid | 5.08 mm | |
| Width | 18.4 mm | |
| Assembly | THT | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Connection | cage clamp | |
| Height | 15.5 mm | |
| Cable cross-section | 0.05-3 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
