5-1437664-7 | TE Connectivity

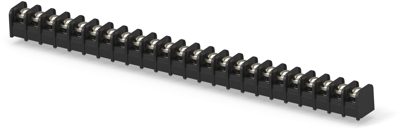

PCB terminal, 24 pole, AWG 22 to 12, 20 A, screw connection, black, 5-1437664-7
Unit Price (€ / pc.)
33.558 € *
Available in 5 Days: 13 pcs. - if ordered today

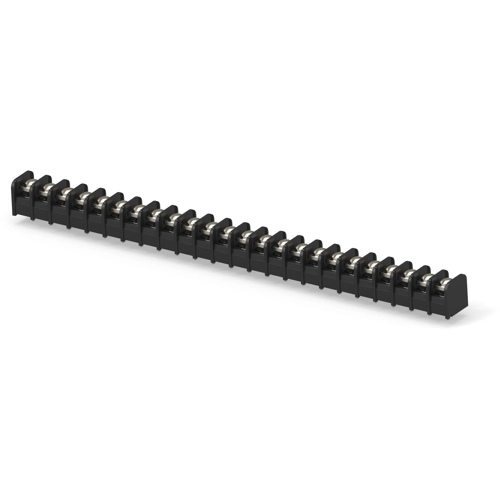

PCB terminal, 5-1437664-7, TE Connectivity
Barrier strip, Dual barrier, Printed circuit pin, Wire-to-Board, 24 Position, 9.53 mm Centerline, 1 Row, 300 V.
Applications
- Machine control
- Power supplies
- Test & measurement
- Automation equipment
- Security/alarm devices
- Garage door openers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 to 12 | |
| Colour | black | |
| Connection | screw connection | |
| Cable cross-section | 0.3-3.0 mm² | |
| Width | 16 mm | |
| Height | 16.51 mm | |
| Assembly | THT | |
| Pin number | 24 pole | |
| Rated current | 20 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
