4-796641-2 | TE Connectivity

PCB terminal, 5 pole, pitch 5 mm, AWG 30-12, 15 A, cage clamp, black, 4-796641-2

Order No.: 71P9153
EAN: 4099891631758
MPN:
4-796641-2
TE Connectivity

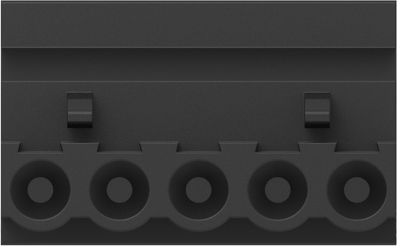

4-796641-2 TE Connectivity PCB Terminal Blocks Image 1

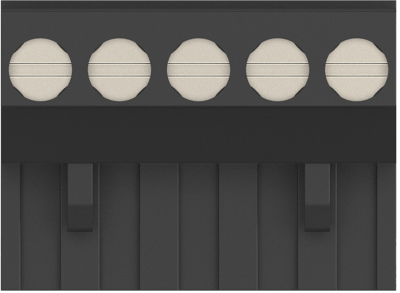

4-796641-2 TE Connectivity PCB Terminal Blocks Image 2

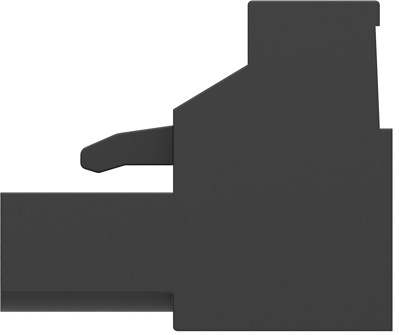

4-796641-2 TE Connectivity PCB Terminal Blocks Image 3

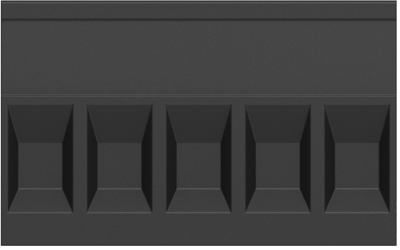

4-796641-2 TE Connectivity PCB Terminal Blocks Image 4

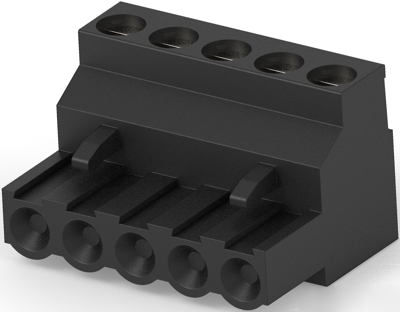

4-796641-2 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
2.4871 € *
Available: 0 pcs.
Available in 5 Days: 25,200 pcs.
Leadtime: 1 Week **
Total Price:
2.49 € *
Price list
Quantity
Price per unit*
40 pcs.
2.4871 €
200 pcs.
2.3562 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 4-796641-2, TE Connectivity

PCB Terminal block, Plug, Wire-to-Board, 5 Position, 5 mm Centerline, 1 Row, Side wire entry angle, 30 - 12 AWG Wire size.

Applications

  • Industrial control
  • HVAC equipment and control
  • Communications equipment
  • Test and measurement
  • Fire and security
Technical specifications
Connection cage clamp
AWG cross-section AWG 30-12
Width 18.4 mm
Colour black
Height 15.5 mm
Cable cross-section 0.05-3 mm²
Rated voltage 300 V
Rated current 15 A
Pin number 5 pole
Grid 5 mm
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
