4-1437653-5 | TE Connectivity
PCB terminal, 11 pole, AWG 22 to 12, 25 A, screw connection, black, 4-1437653-5
Unit Price (€ / pc.)
11.2336 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
11.23 € *
Price list
Quantity
Price per unit*
1 pcs.
11.2336 €
10 pcs.
10.4363 €
25 pcs.
9.7342 €
50 pcs.
8.8536 €
*incl. VAT plus shipping costs
Subject to prior sale

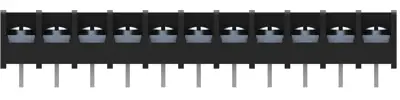

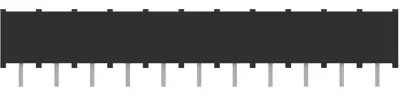

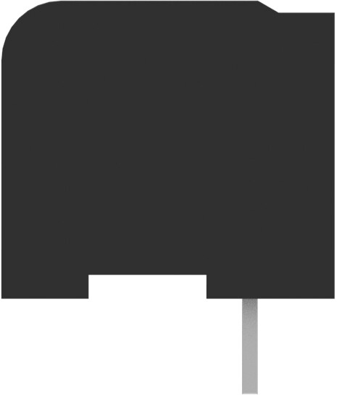

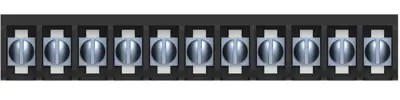

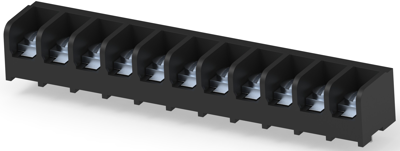

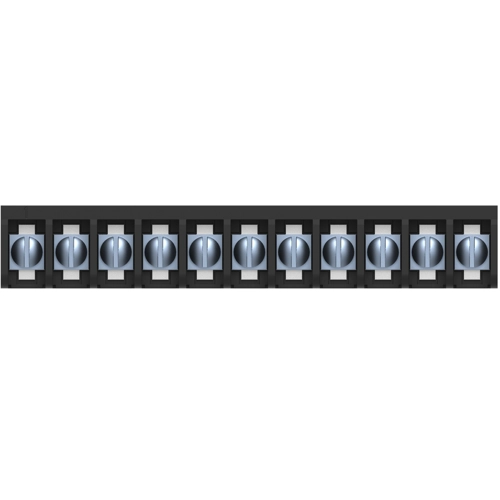

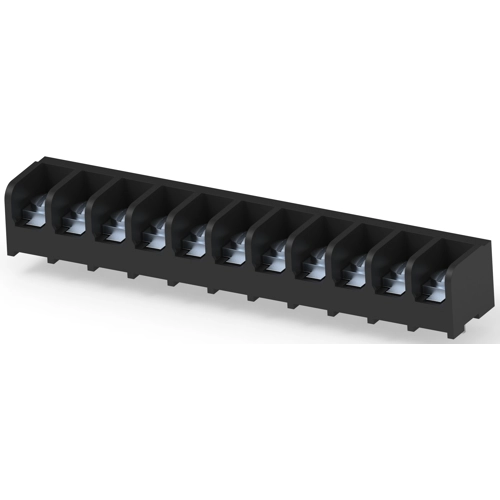

PCB terminal, 4-1437653-5, TE Connectivity
Barrier strip, Tri-Barrier, Printed circuit pin, Wire-to-Board, 11 Position, 9.53 mm Centerline, 1 Row, 300 V / 600 V.
Applications
- Machine control
- Power supplies
- Test & measurement
- Automation equipment
- Security/alarm devices
- Garage door openers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 17.78 mm | |
| AWG cross-section | AWG 22 to 12 | |
| Rated current | 25 A | |
| Cable cross-section | 0.326-3.31 mm² | |
| Colour | black | |
| Pin number | 11 pole | |
| Assembly | THT | |
| Height | 15.88 mm | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
