3-2229794-1 | TE Connectivity

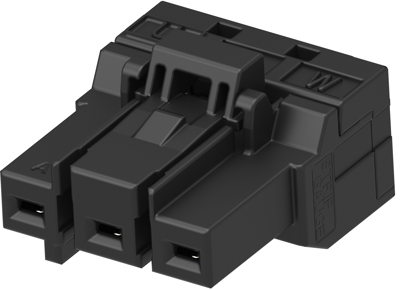

PCB terminal, 3 pole, pitch 7.5 mm, AWG 22-14, 12.7 A, black, 3-2229794-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
3.2011 € *
Available in 12 Days: 7,342 pcs. - if ordered today
Total Price:
3.20 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2011 €
10 pcs.
2.9750 €
25 pcs.
2.7727 €
50 pcs.
2.5228 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 3-2229794-1, TE Connectivity
The 3-2229794-1 provides eficient and reliable solution to power and signal line interface, especially for servo drive application. This product's design allows users to easily obtain a highly reliable wire termination, without having to use screw fasteners or crimps.
Features
- Highly reliable connection by “multiple contact points” stable contact performance
- Safety and easy mating via locking system and guide rail
- Fast field installation and highly reliable field wire termination
- Complete product portfolio for platform design
Applications
- Servo Drive
- Variable Frequency Controller
- Robotic and CNC Control
- PLC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Grid | 7.5 mm | |
| Cable cross-section | 0.32-2.1 mm² | |
| AWG cross-section | AWG 22-14 | |
| Rated current | 12.7 A | |
| Rated voltage | 300 V | |
| Width | 15.6 mm | |
| Height | 25.4 mm | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
