3-1546158-1 | TE Connectivity
PCB terminal, 5 pole, AWG 22 to 12, 25 A, screw connection, black, 3-1546158-1
Unit Price (€ / pc.)
4.3078 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
4.31 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3078 €
10 pcs.
3.9984 €
25 pcs.
3.7247 €
50 pcs.
3.3915 €
*incl. VAT plus shipping costs
Subject to prior sale

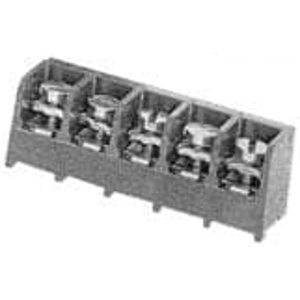

PCB terminal, 3-1546158-1, TE Connectivity
Barrier strip, Tri-Barrier, Printed circuit, Wire-to-Board, 5 Position, 9.53 mm Centerline, 1 Row, 300 V.
Applications
- Machine control
- Power supplies
- Test & measurement
- Automation equipment
- Security/alarm devices
- Garage door openers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 16 mm | |
| Rated current | 25 A | |
| Cable cross-section | 0.3-3.0 mm² | |
| AWG cross-section | AWG 22 to 12 | |
| Pin number | 5 pole | |
| Assembly | THT | |
| Connection | screw connection | |
| Colour | black | |
| Width | 17.78 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
