284517-2 | TE Connectivity
PCB terminal, 2 pole, pitch 3.81 mm, AWG 30-14, 11 A, pin, green, 284517-2
Order No.: 71P7165
EAN: 4099891631383
MPN:
284517-2
Unit Price (€ / pc.)
0.7140 € *
Available in 5 Days: 12,901 pcs. - if ordered today
Total Price:
0.71 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7140 €
10 pcs.
0.6545 €
25 pcs.
0.6188 €
50 pcs.
0.5593 €
*incl. VAT plus shipping costs
Subject to prior sale

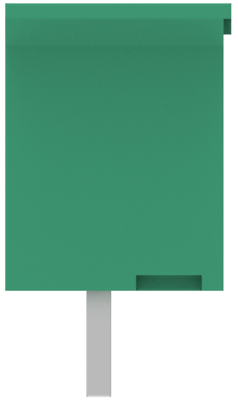

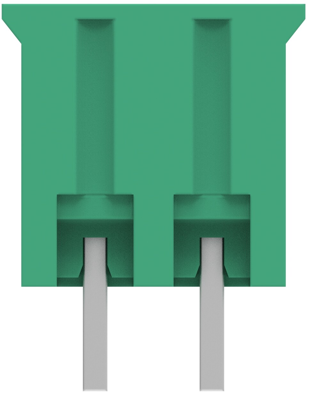

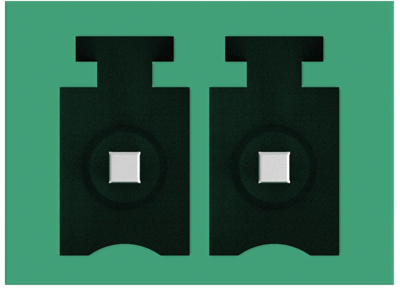

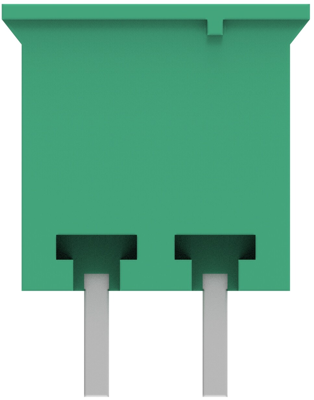

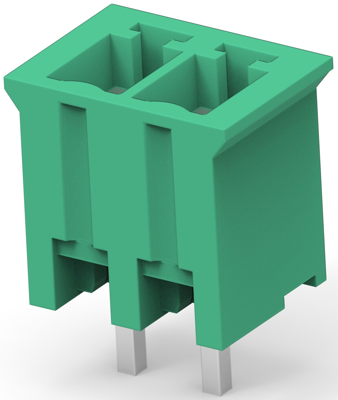

PCB terminal, 284517-2, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 2 Position, 3.81 mm Centerline, 1 Row, 30 - 14 AWG Wire size, 0.05 - 2 mm² Wire size, 11 A.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 30-14 | |
| Colour | green | |
| Connection | pin | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.05-2 mm² | |
| Width | 7.25 mm | |
| Height | 9.2 mm | |
| Assembly | THT | |
| Pin number | 2 pole | |
| Grid | 3.81 mm | |
| Rated current | 11 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
