284512-8 | TE Connectivity
PCB terminal, 8 pole, pitch 3.5 mm, AWG 30-14, 11 A, pin, green, 284512-8
Order No.: 71P7158
EAN: 4099891631314
MPN:
284512-8
Unit Price (€ / pc.)
4.2602 € *
Available in 5 Days: 7,070 pcs. - if ordered today
Total Price:
4.26 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2602 €
10 pcs.
3.9508 €
25 pcs.
3.6890 €
50 pcs.
3.3558 €
*incl. VAT plus shipping costs
Subject to prior sale

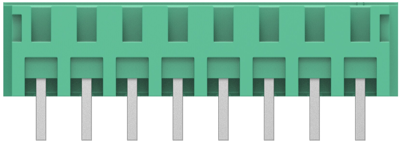

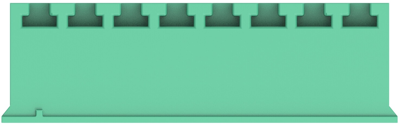

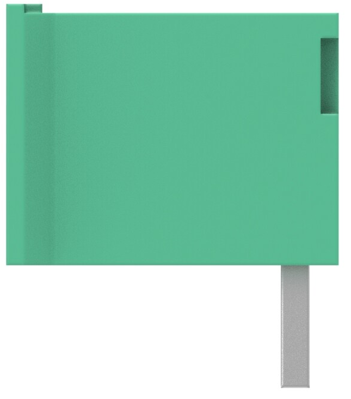

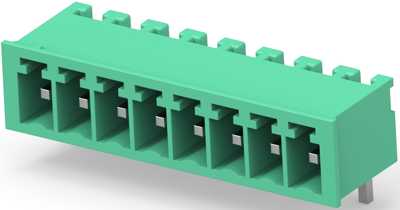

PCB terminal, 284512-8, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 8 Position, 3.5 mm Centerline, 1 Row, 30 - 14 AWG Wire size, 0.05 - 2 mm² Wire size, 11 A.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 9.2 mm | |
| Grid | 3.5 mm | |
| AWG cross-section | AWG 30-14 | |
| Rated current | 11 A | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.05-2 mm² | |
| Colour | green | |
| Pin number | 8 pole | |
| Assembly | THT | |
| Height | 7.3 mm | |
| Connection | pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
