284512-3 | TE Connectivity
PCB terminal, 3 pole, pitch 3.5 mm, AWG 30-14, 11 A, pin, green, 284512-3
Order No.: 71P7156
EAN: 4099891631291
MPN:
284512-3
Unit Price (€ / pc.)
0.6902 € *
Available in 5 Days: 17,153 pcs. - if ordered today
Total Price:
0.69 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6902 €
10 pcs.
0.6426 €
25 pcs.
0.5950 €
50 pcs.
0.5355 €
*incl. VAT plus shipping costs
Subject to prior sale

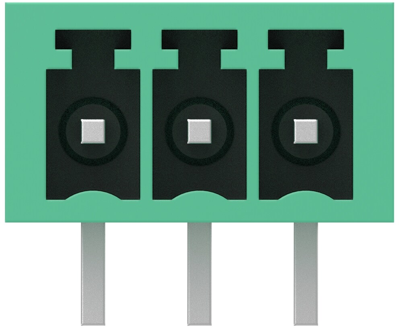

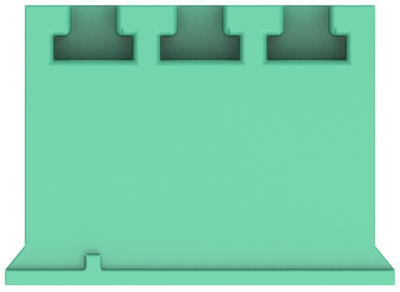

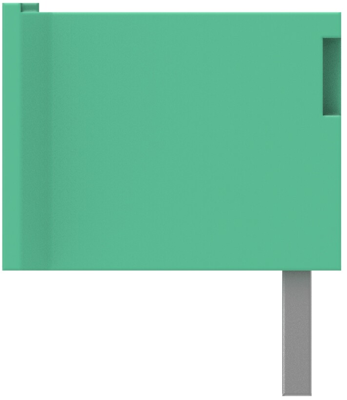

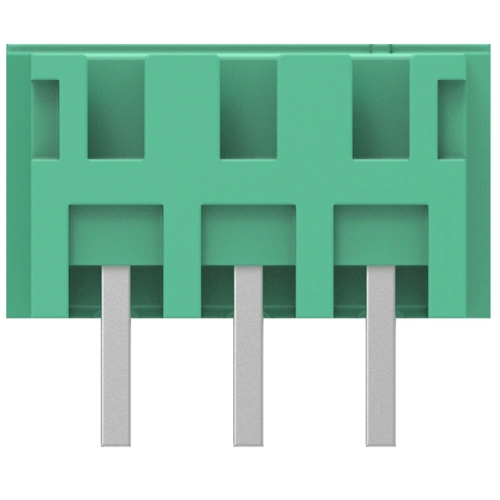

PCB terminal, 284512-3, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 3 Position, 3.5 mm Centerline, 1 Row, 30 - 14 AWG Wire size, 0.05 - 2 mm² Wire size, 11 A.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | pin | |
| Width | 9.2 mm | |
| Colour | green | |
| Pin number | 3 pole | |
| AWG cross-section | AWG 30-14 | |
| Rated voltage | 300 V | |
| Assembly | THT | |
| Height | 7.3 mm | |
| Rated current | 11 A | |
| Cable cross-section | 0.05-2 mm² | |
| Grid | 3.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
