284511-5 | TE Connectivity

PCB terminal, 5 pole, pitch 3.81 mm, AWG 30-14, 11 A, cage clamp, green, 284511-5

Order No.: 71P7153
EAN: 4099891631260
MPN:
284511-5
TE Connectivity

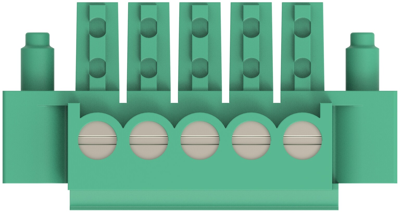

284511-5 TE Connectivity PCB Terminal Blocks Image 1

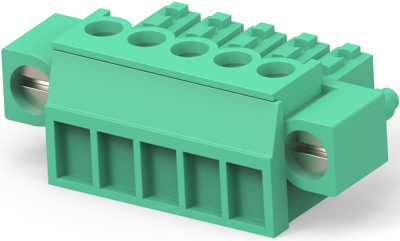

284511-5 TE Connectivity PCB Terminal Blocks Image 2

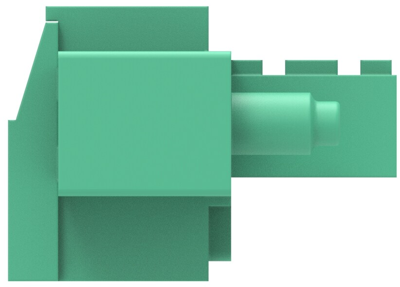

284511-5 TE Connectivity PCB Terminal Blocks Image 3

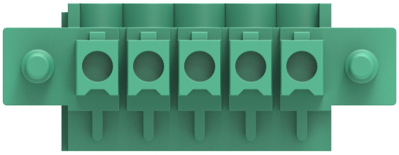

284511-5 TE Connectivity PCB Terminal Blocks Image 4

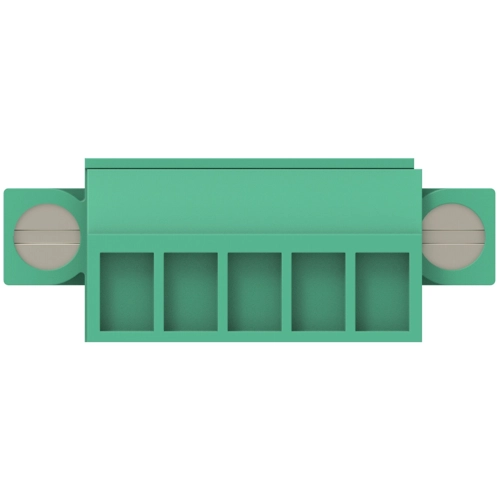

284511-5 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
8.8417 € *
Available: 0 pcs.
Available in 5 Days: 850 pcs.
Leadtime: 1 Week **
Total Price:
8.84 € *
Price list
Quantity
Price per unit*
15 pcs.
8.8417 €
60 pcs.
7.1281 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 284511-5, TE Connectivity

PCB Terminal block, Plug, Wire-to-Board, 5 Position, 3.81 mm Centerline, 1 Row, Side wire entry angle, 30 - 14 AWG Wire size.

Applications

  • Industrial control
  • HVAC equipment and control
  • Communications equipment
  • Test and measurement
  • Fire and security
Technical specifications
Connection cage clamp
AWG cross-section AWG 30-14
Width 15.5 mm
Colour green
Height 11.1 mm
Cable cross-section 0.05-2 mm²
Rated voltage 300 V
Rated current 11 A
Pin number 5 pole
Grid 3.81 mm
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
