284507-7 | TE Connectivity

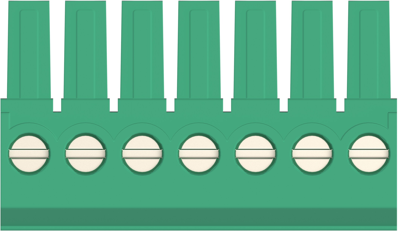

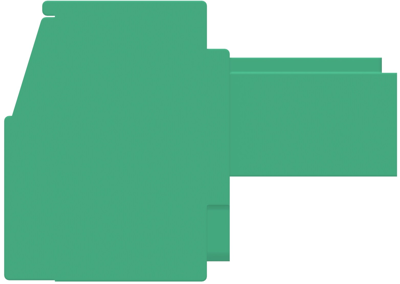

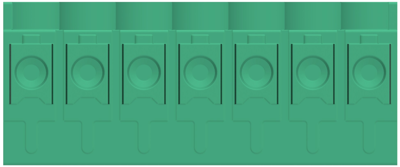

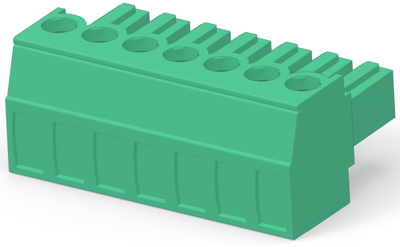

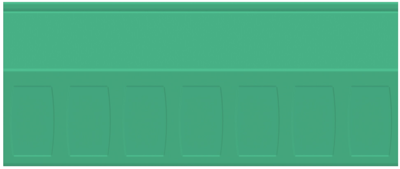

PCB terminal, 7 pole, pitch 3.81 mm, AWG 30-14, 11 A, cage clamp, green, 284507-7
Order No.: 71P7150
EAN: 4099891631239
MPN:
284507-7
Unit Price (€ / pc.)
12.9472 € *
Available in 5 Days: 142 pcs. - if ordered today
Total Price:
12.95 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9472 €
10 pcs.
12.0309 €
25 pcs.
11.2217 €
50 pcs.
10.2102 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 284507-7, TE Connectivity
PCB Terminal block, Plug, Wire-to-Board, 7 Position, 3.81 mm Centerline, 1 Row, Side wire entry angle, 30 - 14 AWG Wire size.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 15.5 mm | |
| Grid | 3.81 mm | |
| AWG cross-section | AWG 30-14 | |
| Rated current | 11 A | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.05-2 mm² | |
| Colour | green | |
| Pin number | 7 pole | |
| Height | 11.1 mm | |
| Connection | cage clamp |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
