284507-4 | TE Connectivity
PCB terminal, 4 pole, pitch 3.81 mm, AWG 30-14, 11 A, cage clamp, green, 284507-4
Order No.: 71P7149
EAN: 4099891631222
MPN:
284507-4
Unit Price (€ / pc.)
3.7723 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
3.77 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7723 €
10 pcs.
3.5105 €
25 pcs.
3.2725 €
50 pcs.
2.9750 €
*incl. VAT plus shipping costs
Subject to prior sale

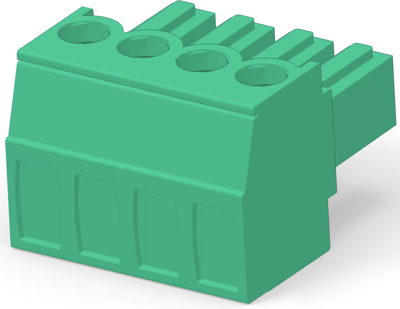

PCB terminal, 284507-4, TE Connectivity
PCB Terminal block, Plug, Wire-to-Board, 4 Position, 3.81 mm Centerline, 1 Row, Side wire entry angle, 30 - 14 AWG Wire size.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.81 mm | |
| Colour | green | |
| Cable cross-section | 0.05-2 mm² | |
| Rated current | 11 A | |
| Height | 11.1 mm | |
| Pin number | 4 pole | |
| AWG cross-section | AWG 30-14 | |
| Connection | cage clamp | |
| Rated voltage | 300 V | |
| Width | 15.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
