284506-4 | TE Connectivity

PCB terminal, 4 pole, pitch 3.5 mm, AWG 30-14, 11 A, cage clamp, green, 284506-4

Order No.: 71P7147
EAN: 4099891631208
MPN:
284506-4

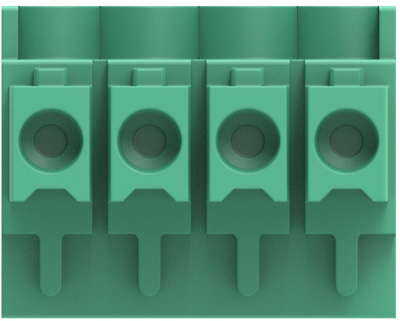

284506-4 TE Connectivity PCB Terminal Blocks Image 1

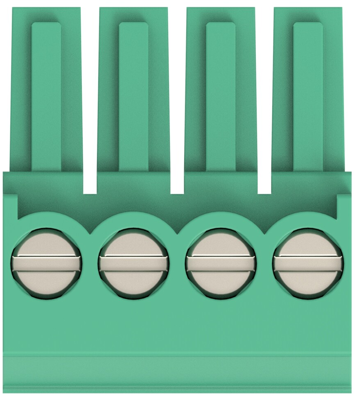

284506-4 TE Connectivity PCB Terminal Blocks Image 2

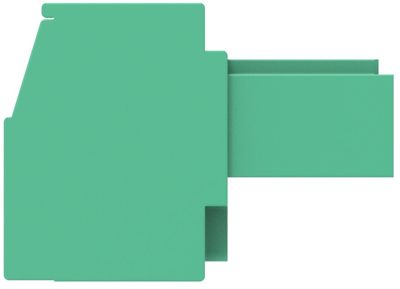

284506-4 TE Connectivity PCB Terminal Blocks Image 3

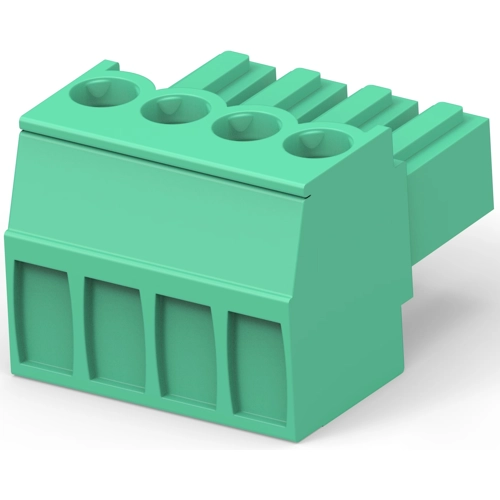

284506-4 TE Connectivity PCB Terminal Blocks Image 4

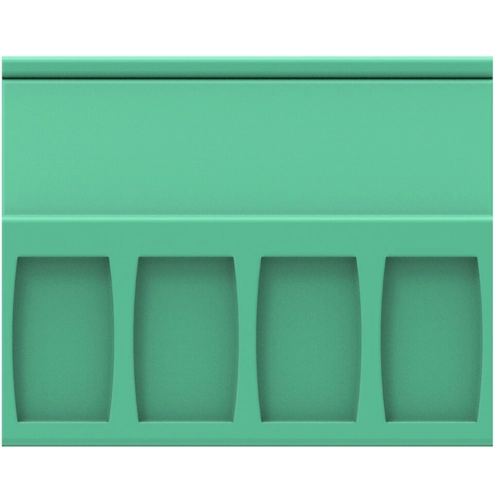

284506-4 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
4.5101 € *
Available in 5 Days: 76 pcs. - if ordered today
Total Price:
4.51 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5101 €
10 pcs.
4.1531 €
50 pcs.
3.7366 €
100 pcs.
3.3677 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 284506-4, TE Connectivity

PCB Terminal block, Plug, Wire-to-Board, 4 Position, 3.5 mm Centerline, 1 Row, Side wire entry angle, 30 - 14 AWG Wire size.

Applications

  • Industrial control
  • HVAC equipment and control
  • Communications equipment
  • Test and measurement
  • Fire and security
Technical specifications
Connection cage clamp
Height 11.1 mm
Grid 3.5 mm
Rated voltage 300 V
Width 15.5 mm
Colour green
Cable cross-section 0.05-2 mm²
AWG cross-section AWG 30-14
Pin number 4 pole
Rated current 11 A
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
