284093-8 | TE Connectivity
PCB terminal, 8 pole, pitch 5 mm, AWG 30-16, 13.5 A, cage clamp, green, 284093-8

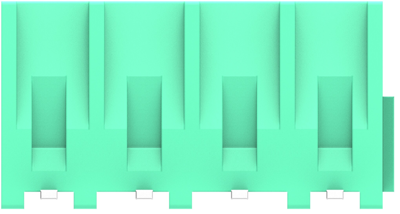

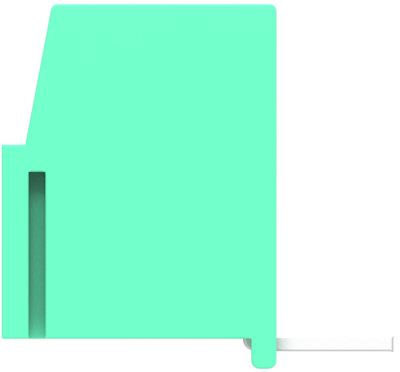

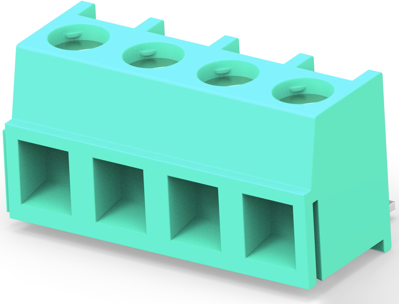

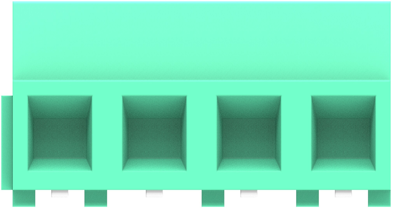

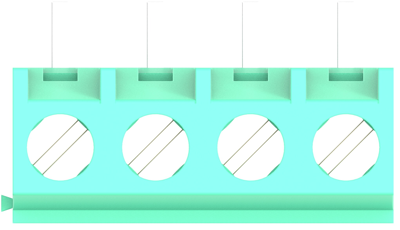

Images may differ
Total price
( 5.7715 € * / pcs.)
5.77 €
Available: 0 pcs.
Available in 5 Days: 875 pcs.
Leadtime
Quantity
Price per unit*
20 pcs.
5.7715 €
95 pcs.
4.3792 €
200 pcs.
3.9984 €
400 pcs.
3.5938 €
500 pcs.
2.6775 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
PCB terminal, 284093-8, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 8 Position, 5 mm Centerline, 1 Row, Top wire entry angle, 30 - 16 AWG Wire size.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 30-16 | |
| Width | 8.2 mm | |
| Colour | green | |
| Height | 10.15 mm | |
| Cable cross-section | 0.05-1.31 mm² | |
| Rated voltage | 300 V | |
| Rated current | 13.5 A | |
| Pin number | 8 pole | |
| Grid | 5 mm |
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
