284047-7 | TE Connectivity
PCB terminal, 7 pole, pitch 5.08 mm, AWG 30-12, 15 A, cage clamp, green, 284047-7
Order No.: 71P7080
EAN: 4099891631055
MPN:
284047-7
Unit Price (€ / pc.)
8.3895 € *
Available in 5 Days: 3,014 pcs. - if ordered today
Total Price:
8.39 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3895 €
5 pcs.
7.9611 €
10 pcs.
7.4494 €
25 pcs.
6.7949 €
*incl. VAT plus shipping costs
Subject to prior sale

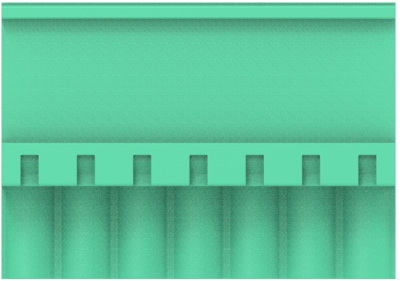

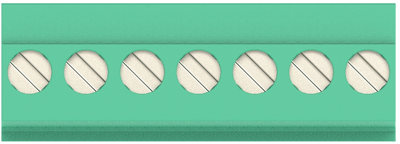

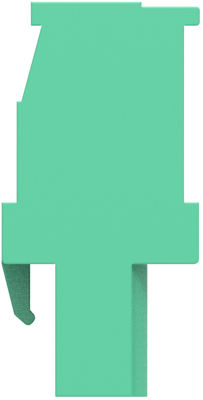

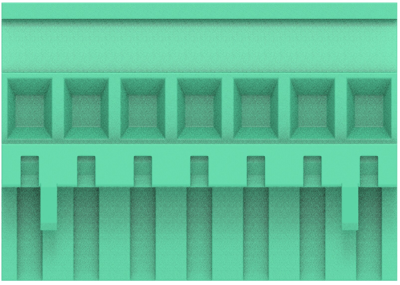

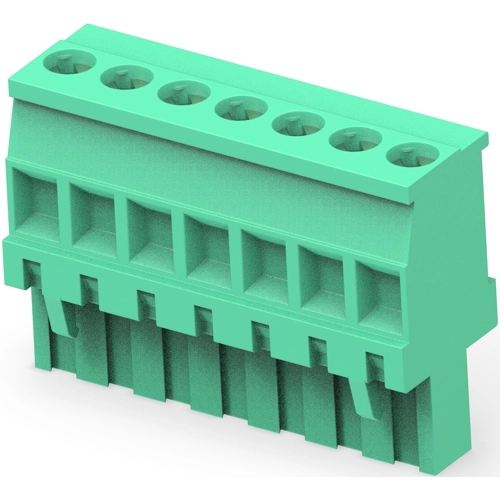

PCB terminal, 284047-7, TE Connectivity
PCB Terminal block, Plug, Wire-to-Board, 7 Position, 5.08 mm Centerline, 1 Row, Side wire entry angle, 30 - 12 AWG Wire size.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | cage clamp | |
| Width | 12.5 mm | |
| Colour | green | |
| Pin number | 7 pole | |
| AWG cross-section | AWG 30-12 | |
| Rated voltage | 300 V | |
| Assembly | THT | |
| Height | 25 mm | |
| Rated current | 15 A | |
| Cable cross-section | 0.05-3 mm² | |
| Grid | 5.08 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
