282880-3 | TE Connectivity

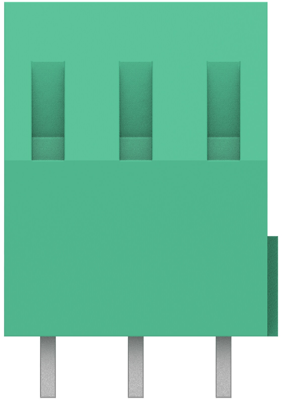

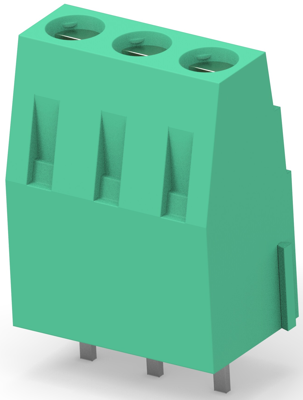

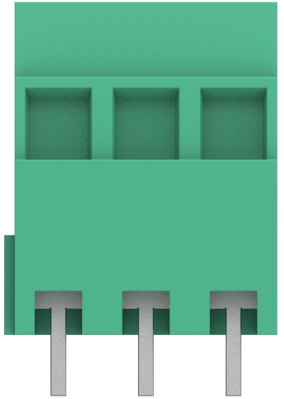

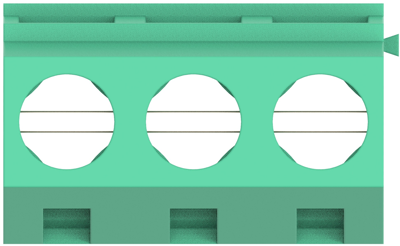

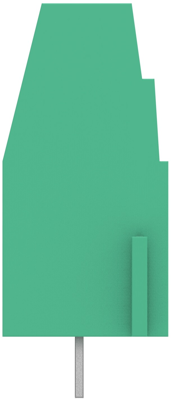

PCB terminal, 3 pole, pitch 5 mm, AWG 30-16, 13.5 A, cage clamp, green, 282880-3
Images may differ
Total price
( 1.8802 € * / pcs.)
1.88 €
Available: 0 pcs.
Available in 5 Days: 3,862 pcs.
Leadtime
Quantity
Price per unit*
50 pcs.
1.8802 €
250 pcs.
1.6779 €
500 pcs.
1.5946 €
800 pcs.
1.5351 €
1000 pcs.
1.1662 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
PCB terminal, 282880-3, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 3 Position, 5 mm Centerline, 1 Row, Side wire entry angle, 30 - 16 AWG Wire size.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 30-16 | |
| Width | 9.5 mm | |
| Colour | green | |
| Height | 19 mm | |
| Cable cross-section | 0.05-1.4 mm² | |
| Rated voltage | 300 V | |
| Rated current | 13.5 A | |
| Pin number | 3 pole | |
| Grid | 5 mm |
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
