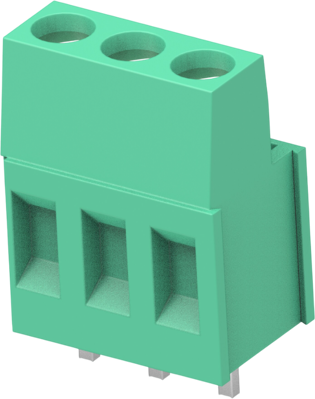

282856-3 | TE Connectivity
PCB terminal, 3 pole, pitch 5 mm, AWG 30-12, 24 A, solder connection, green, 282856-3
Order No.: 59F904
MPN:
282856-3
Unit Price (€ / pc.)
2.5704 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
2.57 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5704 €
10 pcs.
2.3919 €
50 pcs.
2.2015 €
100 pcs.
1.9992 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal block, 282856-3, TE Connectivity
3 Position PCB Terminal Block, Header, Wire-to-Board, 5 mm Centerline, 1 Row, 90° Wire Entry Angle, 30 - 12 AWG, 0.05 - 3 mm² Wire, 300 VAC.
Technical specifications
| Connection | Lötanschluss | |
| AWG cross-section | AWG 30-12 | |
| Width | 15 mm | |
| Colour | grün | |
| Height | 19 mm | |
| Cable cross-section | 0,05-3,0 mm² | |
| Rated voltage | 300 V | |
| Rated current | 24 A | |
| Pin number | 3-polig | |
| Grid | 5 mm | |
| Depth | 10 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
