282847-4 | TE Connectivity

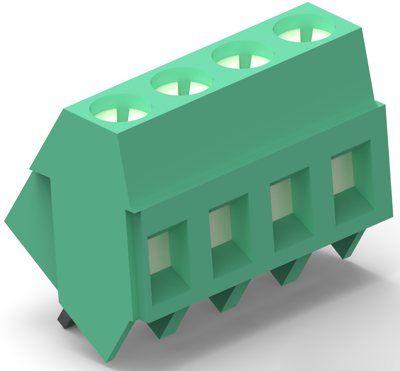

PCB terminal, 4 pole, pitch 5.08 mm, AWG 30-12, 17.5 A, screw connection, green, 282847-4
Order No.: 38P7487
EAN: 4099891039554
MPN:
282847-4
Unit Price (€ / pc.)
1.8088 € *
Standard delivery time from the manufacturer is: 10 Weeks
PCB terminal block, 282847-4, TE Connectivity
Wire Protection: With, Terminal Block Connector Type: Header, Connector System: Wire-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Threaded Flange: Without, Number of Positions: 4, Number of Rows: 1, Wire Entry Angle: 35°, Current Rating (Max): 17.5 A, Voltage Rating: 300 VAC, Interlock: With, Contact Base Material: Brass, Contact Current Rating (Max): 17.5 A, Screw Flange: Without, Connector Mounting Type: Board Mount, Housing Material: PA 66, Centerline (Pitch): 5.08 mm, PCB Tail Length: 3.8 mm, Wire Size: 30 – 12 AWG, Wire Size: 0.05 – 3 mm², Operating Temperature Range: -40 – 110 °C, Circuit Application: Power & Signal
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| AWG cross-section | AWG 30-12 | |
| Rated current | 17.5 A | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.05-3.0 mm² | |
| Colour | green | |
| Pin number | 4 pole | |
| Assembly | THT | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
