282844-3 | TE Connectivity
PCB terminal, 3 pole, pitch 7.5 mm, AWG 30-12, 17.5 A, cage clamp, green, 282844-3
Order No.: 71P7038
EAN: 4099891630768
MPN:
282844-3
Unit Price (€ / pc.)
1.2971 € *
Available: 0 pcs.
Available in 5 Days: 67,672 pcs.
Leadtime: 1 Week **
Total Price:
1.30 € *
Price list
Quantity
Price per unit*
65 pcs.
1.2971 €
350 pcs.
1.2138 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 282844-3, TE Connectivity

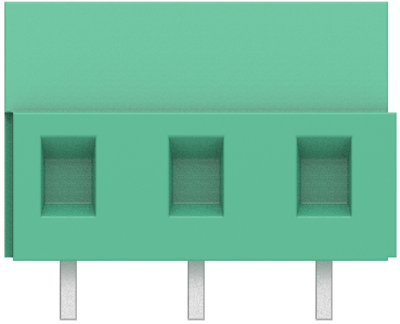

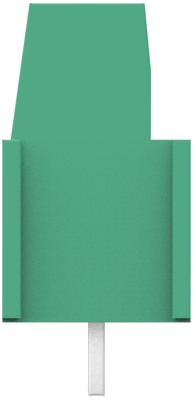

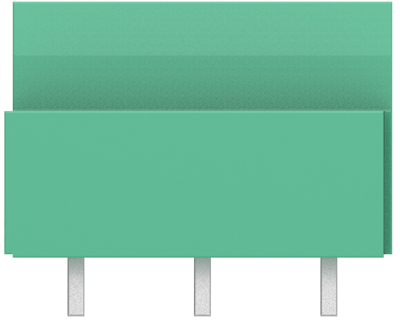

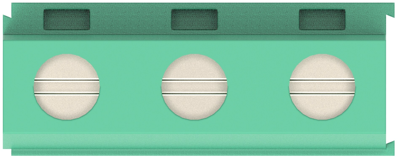

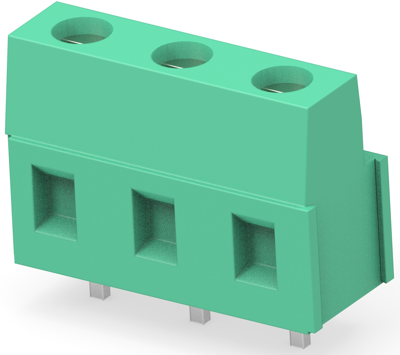

PCB Terminal block, Header, Wire-to-Board, 3 Position, 7.5 mm Centerline, 1 Row, Side wire entry angle, 30 - 12 AWG Wire size.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 30-12 | |
| Width | 9 mm | |
| Colour | green | |
| Height | 15.2 mm | |
| Cable cross-section | 0.05-2 mm² | |
| Rated voltage | 300 V | |
| Rated current | 17.5 A | |
| Pin number | 3 pole | |
| Grid | 7.5 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
