282841-6 | TE Connectivity
PCB terminal, 6 pole, pitch 5.08 mm, AWG 30-12, 17.5 A, cage clamp, green, 282841-6
Order No.: 71P7034
EAN: 4099891630737
MPN:
282841-6
Unit Price (€ / pc.)
3.0940 € *
Available in 5 Days: 179 pcs. - if ordered today
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0940 €
10 pcs.
2.8560 €
50 pcs.
2.5704 €
100 pcs.
2.3086 €
*incl. VAT plus shipping costs
Subject to prior sale

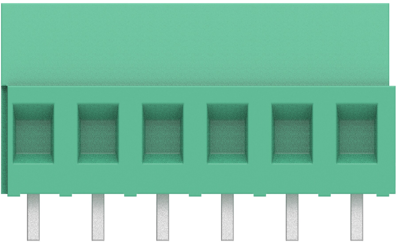

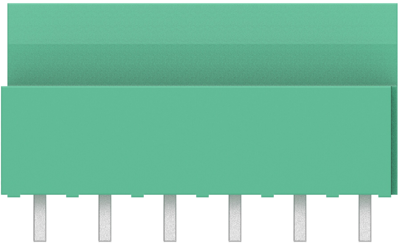

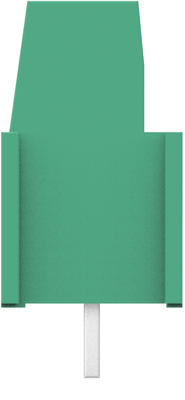

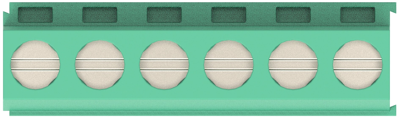

PCB terminal, 282841-6, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 6 Position, 5.08 mm Centerline, 1 Row, Side wire entry angle, 30 - 12 AWG Wire size.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Colour | green | |
| AWG cross-section | AWG 30-12 | |
| Rated current | 17.5 A | |
| Grid | 5.08 mm | |
| Width | 9 mm | |
| Height | 15.2 mm | |
| Cable cross-section | 0.05-3 mm² | |
| Pin number | 6 pole | |
| Connection | cage clamp | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
