282837-3 | TE Connectivity

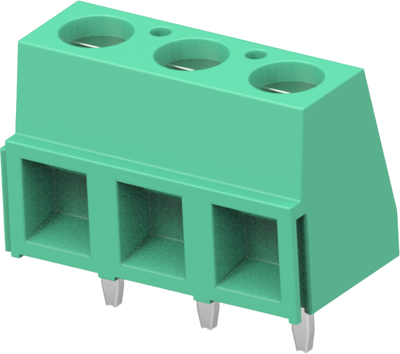

PCB terminal, 3 pole, pitch 5.08 mm, AWG 30-16, 13.5 A, solder connection, green, 282837-3
Order No.: 59F895
MPN:
282837-3
Unit Price (€ / pc.)
1.0353 € *
Available in 5 Days: 22,989 pcs. - if ordered today
Total Price:
1.04 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0353 €
10 pcs.
0.9520 €
25 pcs.
0.8925 €
50 pcs.
0.8092 €
*incl. VAT plus shipping costs
Subject to prior sale

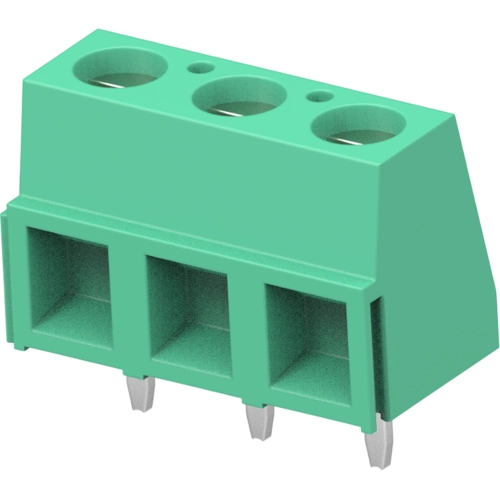

PCB terminal block, 282837-3, TE Connectivity
3 Position PCB Terminal Block, Header, Wire-to-Board, 5.08 mm Centerline, 1 Row, 90° Wire Entry Angle, 30 - 16 AWG, 0.05 - 1.3 mm² Wire.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 8.2 mm | |
| Grid | 5.08 mm | |
| Assembly | THT | |
| Connection | solder connection | |
| Rated current | 13.5 A | |
| Pin number | 3 pole | |
| Width | 15.24 mm | |
| Height | 10 mm | |
| AWG cross-section | AWG 30-16 | |
| Colour | green | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.05-1.3 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
