282826-6 | TE Connectivity
PCB terminal, 6 pole, pitch 10 mm, AWG 30-12, 15 A, pin, green, 282826-6
Order No.: 71P7021
EAN: 4099891630638
MPN:
282826-6
Unit Price (€ / pc.)
3.2963 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
3.30 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2963 €
10 pcs.
3.0583 €
25 pcs.
2.8560 €
50 pcs.
2.5942 €
*incl. VAT plus shipping costs
Subject to prior sale

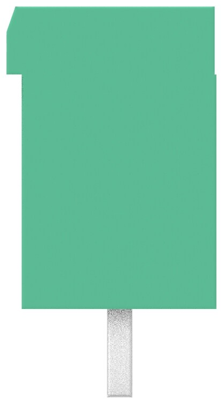

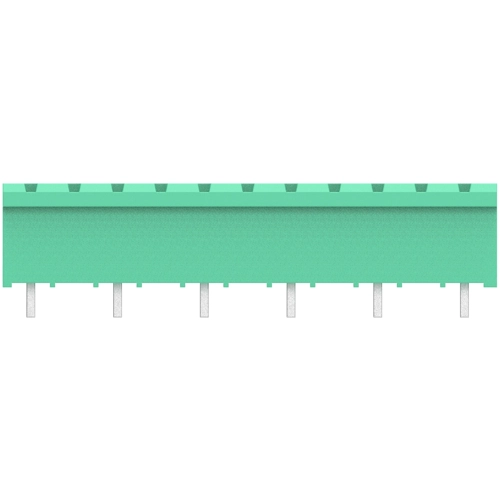

PCB terminal, 282826-6, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 6 Position, 10 mm Centerline, 1 Row, 30 - 12 AWG Wire size, 0.05 - 3 mm² Wire size, 15 A.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 30-12 | |
| Colour | green | |
| Connection | pin | |
| Rated voltage | 600 V | |
| Cable cross-section | 0.05-3 mm² | |
| Width | 8.35 mm | |
| Height | 12 mm | |
| Assembly | THT | |
| Pin number | 6 pole | |
| Grid | 10 mm | |
| Rated current | 15 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
