282824-3 | TE Connectivity

PCB terminal, 3 pole, pitch 5.08 mm, AWG 30-12, 15 A, pin, green, 282824-3

Order No.: 71P7019
EAN: 4099891630614
MPN:
282824-3

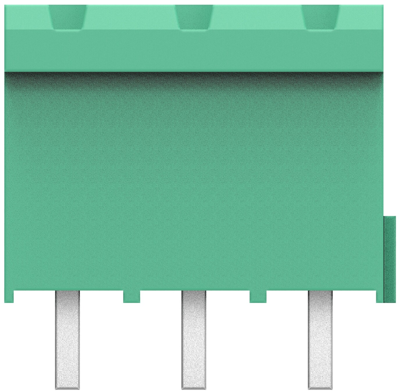

282824-3 TE Connectivity PCB Terminal Blocks Image 1

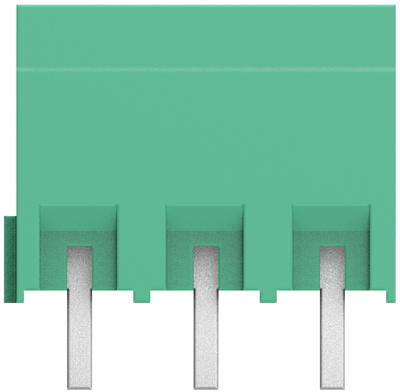

282824-3 TE Connectivity PCB Terminal Blocks Image 2

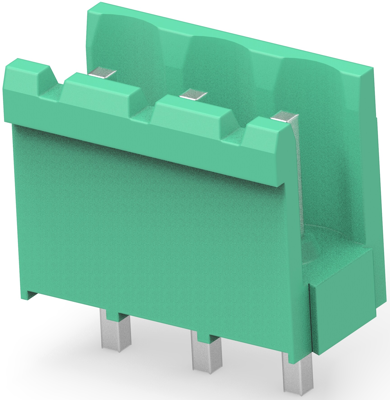

282824-3 TE Connectivity PCB Terminal Blocks Image 3

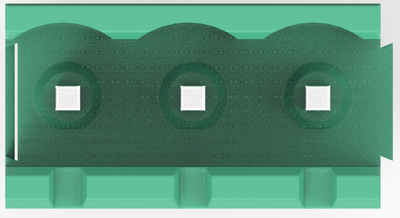

282824-3 TE Connectivity PCB Terminal Blocks Image 4

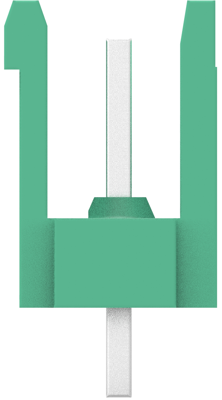

282824-3 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
1.1900 € *
Available in 5 Days: 1,600 pcs. - if ordered today
Total Price:
1.19 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1900 €
10 pcs.
1.0710 €
50 pcs.
0.9639 €
100 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 282824-3, TE Connectivity

PCB Terminal block, Header, Wire-to-Board, 3 Position, 5.08 mm Centerline, 1 Row, 30 - 12 AWG Wire size, 0.05 - 3 mm² Wire size, 15 A.

Applications

  • Industrial control
  • HVAC equipment and control
  • Communications equipment
  • Test and measurement
  • Fire and security
Technical specifications
Rated voltage 300 V
AWG cross-section AWG 30-12
Cable cross-section 0.05-3 mm²
Connection pin
Pin number 3 pole
Grid 5.08 mm
Colour green
Rated current 15 A
Width 8.35 mm
Height 12 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
